Description
Warning! Megatron is designed exclusively for "harder to drive stuff", like our premium earbuds / all the proper full-size headphones and a few IEMs, especially the planar IEMs, and this is NOT meant for those super easy to drive IEMS, it is just simply not designed for that~
Megatron SAGA (the creation process, from the pre-ordering to final Q&A)from our official Youtube channel
https://www.youtube.com/watch?v=MlgV8C6H96o&t=606s
PREMIUM ES9018K2M DAC CHIP: Adopting professional digital and analogue circuits allows the Megatron to offer dynamic surround sound effects on headphones or active loudspeakers. With the mainstream ES9018K2M DAC integrated into the Megatron, it offers high-fidelity audio playback with support to the sampling rate of up 24-bit/96kHz PCM. This allows you to pick up on even the finer nuances and details of the sound while playing games, watching movies or listening to music.
IMPROVE SOUND QUALITY: Megatron DAC/Amp is suitable for VE headphones or earbuds and those headphones that require very high power, hard to drive, Such as Zen2.0 for more powerful and cleaner sound quality.

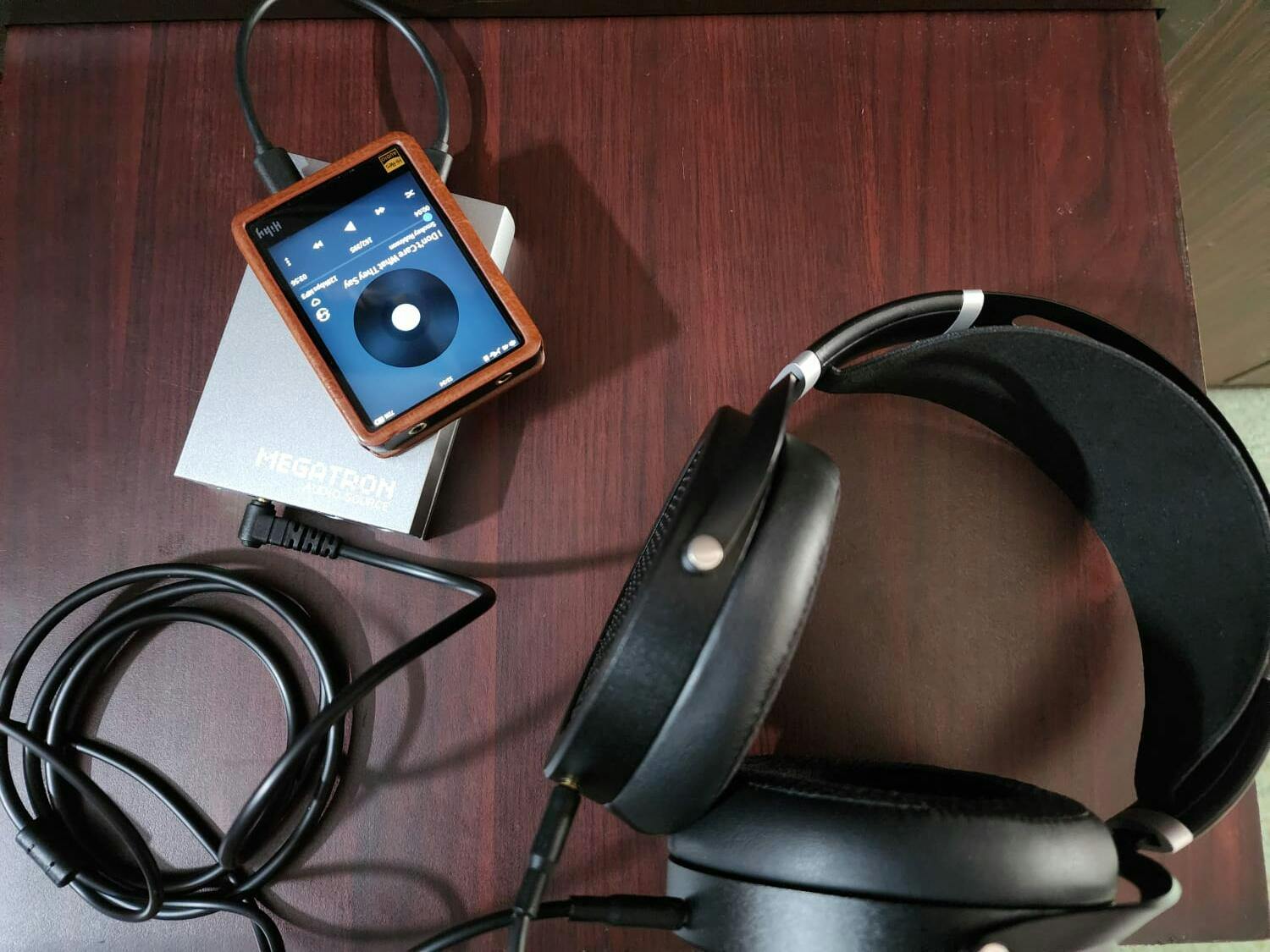

MINIMALIST DESIGN: This Megatron DAC & Amp weighed 156g with dimensions of 110mm x 76mm x 22mm it’s obviously in a different category, more like a portable DAC/amp. The design looks rather minimalistic and has a rectangular aluminium chassis with slightly curved sides. On the front you have a small pinhole for a status LED that turns green in DAC/amp mode and blue in LO mode and on the back this DAC has USB-c charging port, USB-c data port, 3.5mm Line Out, and a toggle switch to select between DAC/amp and LO modes.
MULTIPLE OUTPUT PORTS: The DAC is coupled with a Class AB amp to produce a high-power output with SE 3.5mm at 2.4V and BAL 2.5/4.4mm at 4.9V. Line Out 3.5mm output is at 0.95V.
TYPE C USB PORT: It's easy to connect an external 5V charger to a Megatron charging port so that it can also provide power to your phone. This is also true for laptops with Thunderbolt USB-c ports used for charging and data transfer. When you connect Megatron's data port to your laptop and an external 20V PD charger to Megatron's charge port, you can use your laptop as a source while charging it at the same time which is very convenient!
