Description
The Xduoo XD-05 Plus is the perfect DAC/Amp for your music needs. It's AKM AK4493EQ DAC can decode up to DSD 256 audio files. The high-quality circuitry is designed to bring out the best in your music, while the multiple connectivity options leave you spoilt for choice!
More Power to You
Bring out the best in your headphones with the Xduoo XD-05 Plus DAC/Amp. This device houses AK4493EQ and XMOS XU208 chips that work in asynchronous transfer mode. These can support sampling rates up to 32-bit/384KHz and DSD256 playback. The user-replaceable OP-AMP lets you tweak the sound signature according to your preferences.
High-Quality Circuitry to Add More to Your Music
The Xduoo XD-05 Plus' circuit is designed with two active-low phase noise crystal oscillators that work with CPLD to reduce jitter to imperceptible levels. The built-in filter, efficient power conversion circuit and optimised LDO circuit power the decoder chip, LPF, AMP, XMOS and digital receiver chip independently. A 3.8V/5000mAh rechargeable li-polymer battery powers the entire DAC/Amp for long listening sessions.
More Seamless Connectivity Options
The Xduoo XD-05 Plus allows you to connect to multiple input options. These include USB (with an XMOS XU208 interface), Optical, Coaxial and AUX-in. All inputs support the DSD signal for a high-quality audio experience. It can deliver a powerful output of up to 1000mW.
Model No: XD-05 Plus
Compliant operating systems: Windows XP/7/8/10, Mas OS X, IOS, Android
DAC chip: AK4493EQ
USB chipset: XMOS XU208
Output power: 1000mW at 32 ohms
Frequency response (amp): 10Hz~100kHz (±0.5 dB)
Frequency response (USB/SPDIF): 20Hz~20kHz (±0.5 dB)
THD+ N (USB/SPDIF in): 0.0016% at 1kHz
THD + N (aux in): 0.0009% at 1kHz
S/N: 117dB
Crosstalk: ≥75dB
Battery: 3.8V / 5000mAh
Battery life: ≥13 hours (USB in), ≥21 hours (SPDIF in), ≥40 hours (aux in)
Sampling Rate Support
USB (PCM): 16–32bit / 44.1–384kHz
DSP: DOP / NATIVE mode, DSD64–256 (1bit / 2.8M–11.2M)
DXD: 24–32bit / 352.8K–384kHz
OPT/COA (PCM): 16–24bit / 44.1–192kHz
DSD: 1bit / 2.82 Mhz (DOP)
Warranty Period: 1 Year
In The Box
1U USB charging cable
1U Type C to type c cable
1U Type C to Micro cable
1U 3.5mm to 6.5mm connector
4U rubber feet
1U Silicone band
1U User manual
Warranty Period: 1 Year from the date of Invoice
Covered: Manufacturing Defects Only
Warranty Form: https://www.theaudiostore.in/pages/warranty-claim-form
xDuoo is a China-based brand that specializes in developing high-end audio products. They offer a wide range of products including portable DACs, amplifiers, audio players, headphone amps, and much more. The brand is known for its unique designs and excellent sound quality. They aim to provide customers with the best audio experience possible, with attention to detail in both aesthetics and sound performance.
I am a beginner audiophile. I bought a dt770 pro 80 ohm and a fiio q3. Fiio wasn't bad and it could drive the headphone well. But when I plugged it into xduoo, just wow. I realized how dt770 pro is supposed to sound
Thank you for your feedback! We're glad you're enjoying the XD-05 PLUS Portable Headphone Amplifier/DAC.
After much reviewing & discussing with experts, decided to purchase this Headphone amps for my Massdrop Senheisser 6XX, which needed a powerful amp to drive the 300 ohms impedance.
I was blown away by the performance of this amps. And the finish and style of this amps is very much superior.
Worth every Rupee spent on this !!
This is my second Xduoo XD -05 series purchase. Last purchase was years ago "old version". So I didn't need to think twice. Ordered Xduoo XD-05 Plus right away from here. It's powerful and Portable too which is rare in this DAC Amp segment. Price also reasonable. Accessories almost every connecting cable for portability is there in the box. It's powerful, nice sounding and not harsh. Special thanks to Pritam for making the purchase easy and hassle free and clearing my doubts quick enough. Looking forward for more purchases from Audiostore.
Fastest delivery i ever had in a tech related product. Just two days.
Excellent customer interaction service.
Regarding Xduoo xd-05 Plus it's just the Frankenstein of Portable dac/amp as of now period. It does everything as a desktop dac amp in terms of power almost but is portable too when compared to them.
Now need a better resolving headphones soon to pair with it

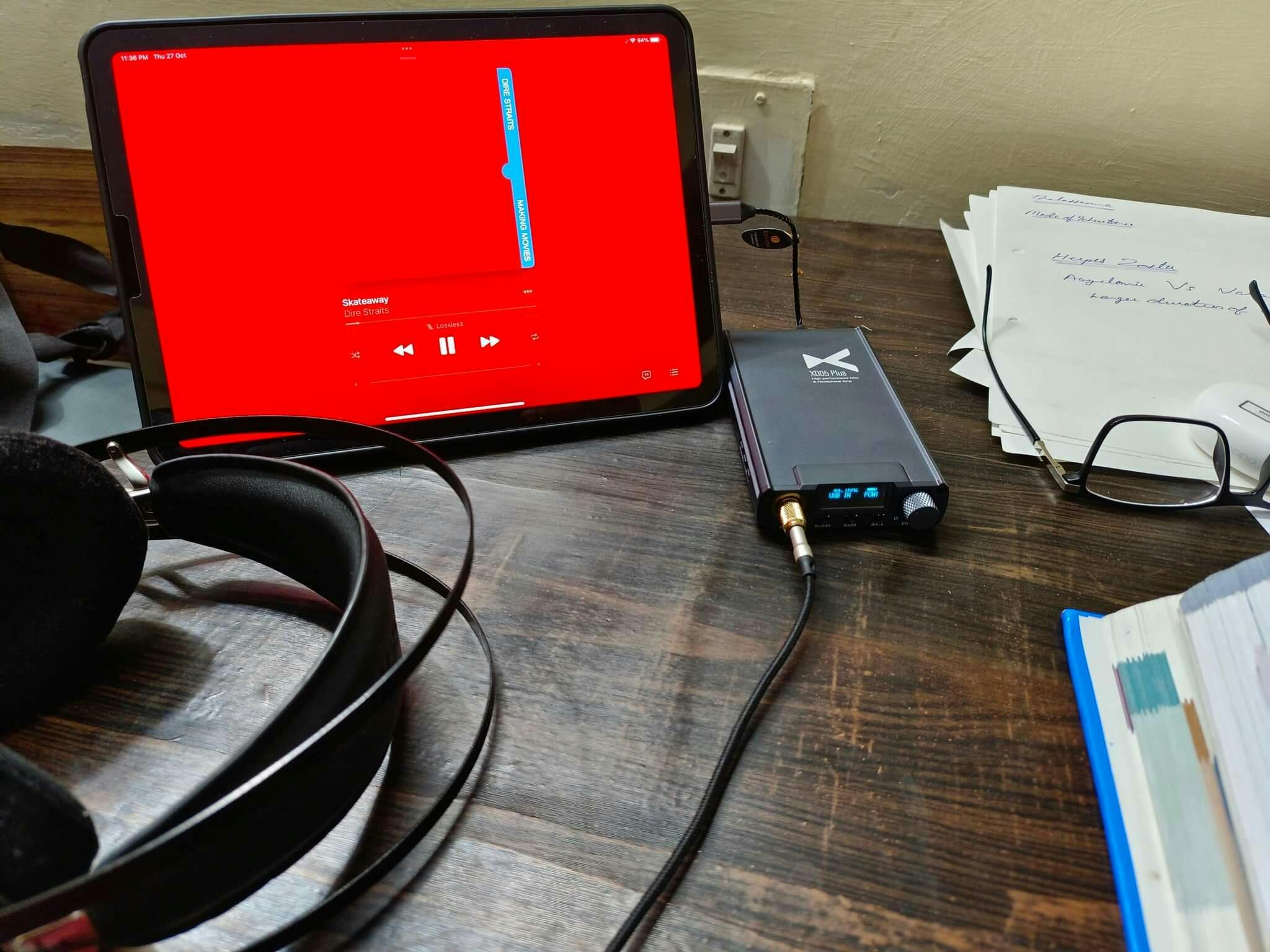

I have been using the XDuoo XD-05 PLUS for the past month to drive my Hifiman Sundara.
On the positive side, this DAC AMP is probably the most powerful AMP-DAC in the portable category. It comes with most commonly-used inputs, but doesn't have BT connectivity, which isn't an issue for me. Battery life seems to be good but these are initial days. Size-wise, a little heavier than others, but manageable to carry around. May be too powerful for most IEMs.
Specifically to usage, it is powerful to bring out the detailing in the Sundara. It has a bass boost option, which I have rarely used - I prefer the gain for a slight bass boost. Overall good for genres of rock, blues, maybe pop, etc. I don't believe it adds to much colour to the original recording but it does 'power' it. When it comes to jazz (vocals in particular), western classical - it is definitely good - you can get the separation, and granularity, but I find the Schiit Modi 3 + Magni Heresy better for these genres.
All in all, decent value for money.
This was my previous dac/amp combo which I used for my Hifiman Sundara. The bass boost toggle is the highlight of this device along with the dynamics offered here
Pros
1) Portable and good battery life
2) Good dynamics
3) Bass boost toggle is a great feature especially for bass light open backs
Few cons to note
1) Vocals are not very warm and natural though not thin by any means.
2) Not the best Soundstage.
