Description

Meet the xDuoo XD-05 Balanced, the perfect balanced DAC/Amp in the world. Equipped with a dual-ESS Sabre DAC, multiple connectivity options and a balanced power supply, it powers your music no matter when and where you want to enjoy it.

The Ultimate Balance

The xDuoo XD-05 Balanced is equipped with a high-end dual-ES9038Q2M DAC. This offers incredible hi-res audio decoding with very low distortion. The DAC is paired with an XMOS XU208 USB signal receiver chip for audio signal decoding up to 32-bit/768kHz and DSD512 natively. The OLED screen shows the best decoding option possible.

Wired? Wireless? Get the Best of Both!

Enjoy hi-res sound in wired mode as well as wirelessly with the XD-05 Balanced. Get lossless digital audio with the USB audio input interface, AES balanced digital input, HD Coaxial & Optical inputs. The Qualcomm CSR8675 Bluetooth chip offers seamless v5.0 connectivity. It is compatible with a variety of high-class codecs including LDAC, aptX HD, aptX LL, aptX and more.

Amp it Up!

Being true to its name, the XD-05 Balanced offers a fully balanced 4.4mm headphone output port with enhanced dynamics and S/N. The OP+BUF amplifier circuit offers a powerful performance of 1000mW power at 32Ω that can easily drive power-hungry headphones. This Amp also has a single-ended 6.35mm headphone output.

The Perfect Power Balance

The xDuoo XD-05 Balanced can be used as a tabletop as well as a portable DAC/amplifier. Connect to an external power supply when using a desktop set-up. Unplug and carry it along for on-the-go music. The inbuilt battery effectively powers it.

Model No: XD-05 BAL
Battery: 3.8V/5000mAh
Battery life: USB IN ≥ 9H, SPDIF IN ≥ 15H, AUX IN ≥ 24H
Screen: 0.91 inch OLED
Applicable OS: Win7/8/10, Linux, Mac OS X, IOS, Android system
Sensitivity: 25Ω
USB/SPDIF: 20Hz~20kHz(±0.5dB)
AMP: 10Hz~60kHz (±0.5dB)
Sampling Rate support: PCM up to 32-Bit/768kHz, DSD up to DSD512.
Output Power(6.35mm): up to 1000mW(32Ω).
THD+N(6.35mm): 0.0015%@1kHz.
SNR(6.35mm): 115dB
Crosstalk(6.35mm): ≥72dB.
USB/SPDIF: 20Hz~20kHz(±0.5dB)
Output Power(4.4mm): up to 1000mW(32Ω)
THD+N(4.4mm): 0.0008%@1kHz
SNR(4.4mm): 117dB
Crosstalk(4.4mm): ≥100dB
Output Level(Aux): 2.0Vrms
Bluetooth: 5.0V
Bluetooth Codec: AAC, SBC, aptX, aptX LL, aptX HD, LDAC
Inputs: Aux, USB, Optical/coaxial, AES
Outputs: 6.35 single-ended, 4.4 balanced, Aux
Size: 13cmx7.5cmx2.2cm
Weight: 0.29Kg
Warranty Period: 1 Year

In The Box
1* USB-C to USB-C long cable
1* USB-C to USB-A adapter
1* Micro-USB to USB-C short cable
1* USB-C to USB-C short cable
1* USB-C to Lightning short cable
1* mini-XLR to mini-XLR cable
1* 6.35mm to 3.5mm jack adapter
1* screwdriver
2* op-amps
1*magic stick
5*screws
10*silicone rubber feet
1*warranty card
1*user manual
1*silicone bands

Warranty Period: 1 Year from the date of Invoice
Covered: Manufacturing Defects Only
Warranty Form: https://www.theaudiostore.in/pages/warranty-claim-form

xDuoo is a China-based brand that specializes in developing high-end audio products. They offer a wide range of products including portable DACs, amplifiers, audio players, headphone amps, and much more. The brand is known for its unique designs and excellent sound quality. They aim to provide customers with the best audio experience possible, with attention to detail in both aesthetics and sound performance.

⚡️ Power Output Wise AMP & DAC Guide

Customer Reviews

Based on 3 reviews
100%
(3)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
A
Anonymous
A Nice Allrounder!

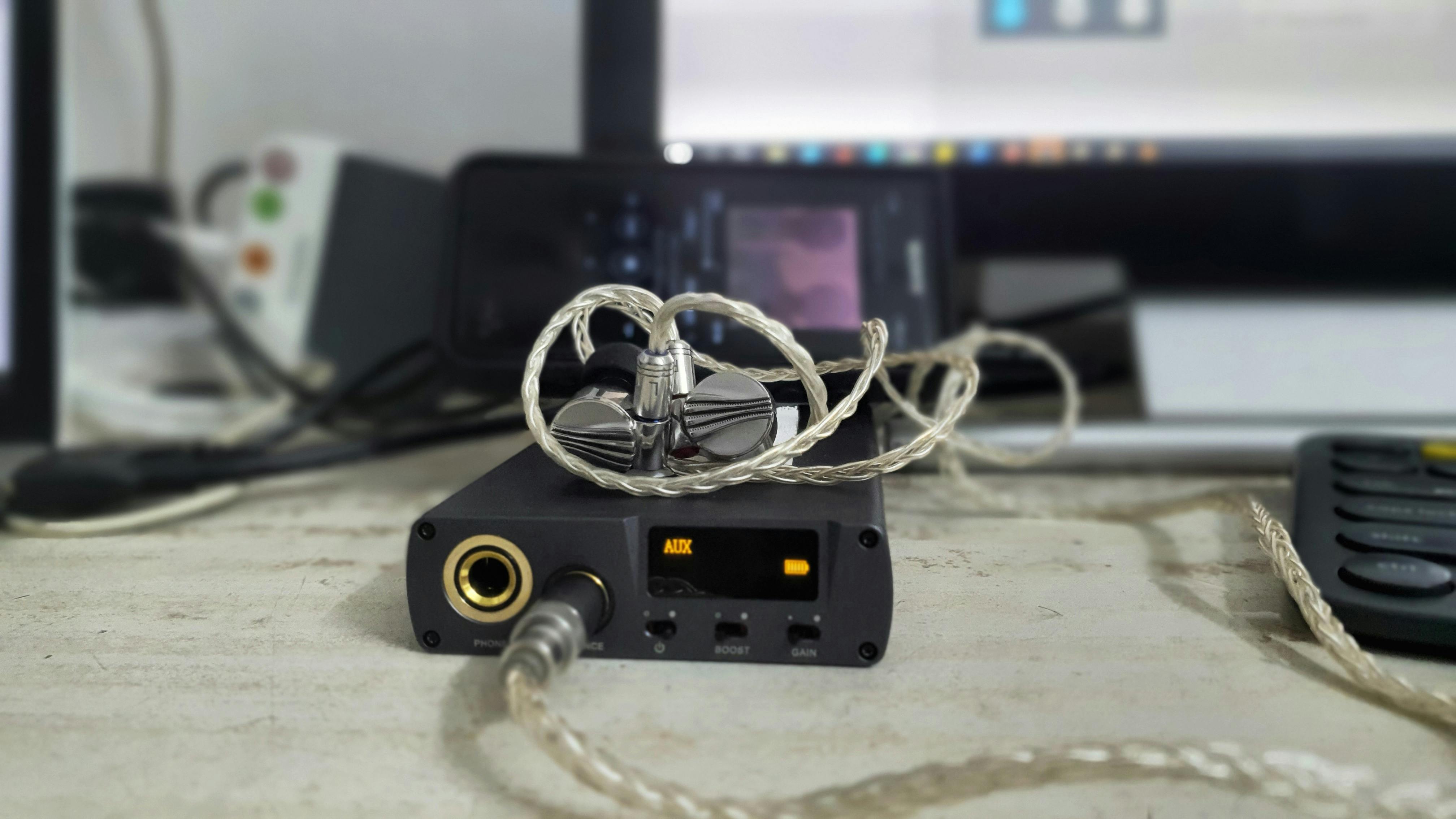

This DAC/Amp will get you all the connections and features that you may would like to have. I am writing this review after owning this for about 5 months. The battery bypass feature is the one that I liked much as we can continue to use the DAC even if the battery fails. Provides enough power to drive any high impedance headphones. Although small it is too heavy, and it may not be possible to keep it in your shirt pocket. Sliding switches are firm but the 'press' buttons to select the source is little finicky and you might happen to change the source when you try to lift or move.
But nevertheless, it is a wonderful allrounder.

S
Subhankar Biswas (Kolkata)
A blast with clarity

A wonderful device with perfect Mac capabilities.. It drives IEMs with easy and HD600 with a breeze. The DAC inside it is a wonderful circuit clearing all the air for intrinsic details. A must have arsenal for portable use. Very important part of the device is its I/O capabilities and gain switch. Con is too heavy

J
Jitesh Jumani (Chennai)
Killer portable Dacamp

This is an excellent dacamp with multiple I/O options. It delivers insane power (1W Balanced and SE) and is transparent in terms of the amp presentation. I'd highly recommend this to anyone who is looking for a portable dac / amp / dacamp. I've previously used the FiiO Q5s (AM3D) and iFi xCan. While the Q5s was equally transparent, it did not have the power to drive my headphones. Also, the Q5s is somewhat lean sounding in comparison. The Xcan though powerful, colored the sound quite a bit, which wasn't what I wanted. The XD05-BAL is the perfect fit for my usage.

The added benefit of having a display and mic (when compared to Q5s), makes it a great AIO portable audio solution. Another great feature of the XD05-BAL is that one can use it off the internal battery or with an external USB power supply, completely bypassing the battery.

Theaudiostore was quick to ship the order. Shoutout to Pritam for patiently handling my queries.
