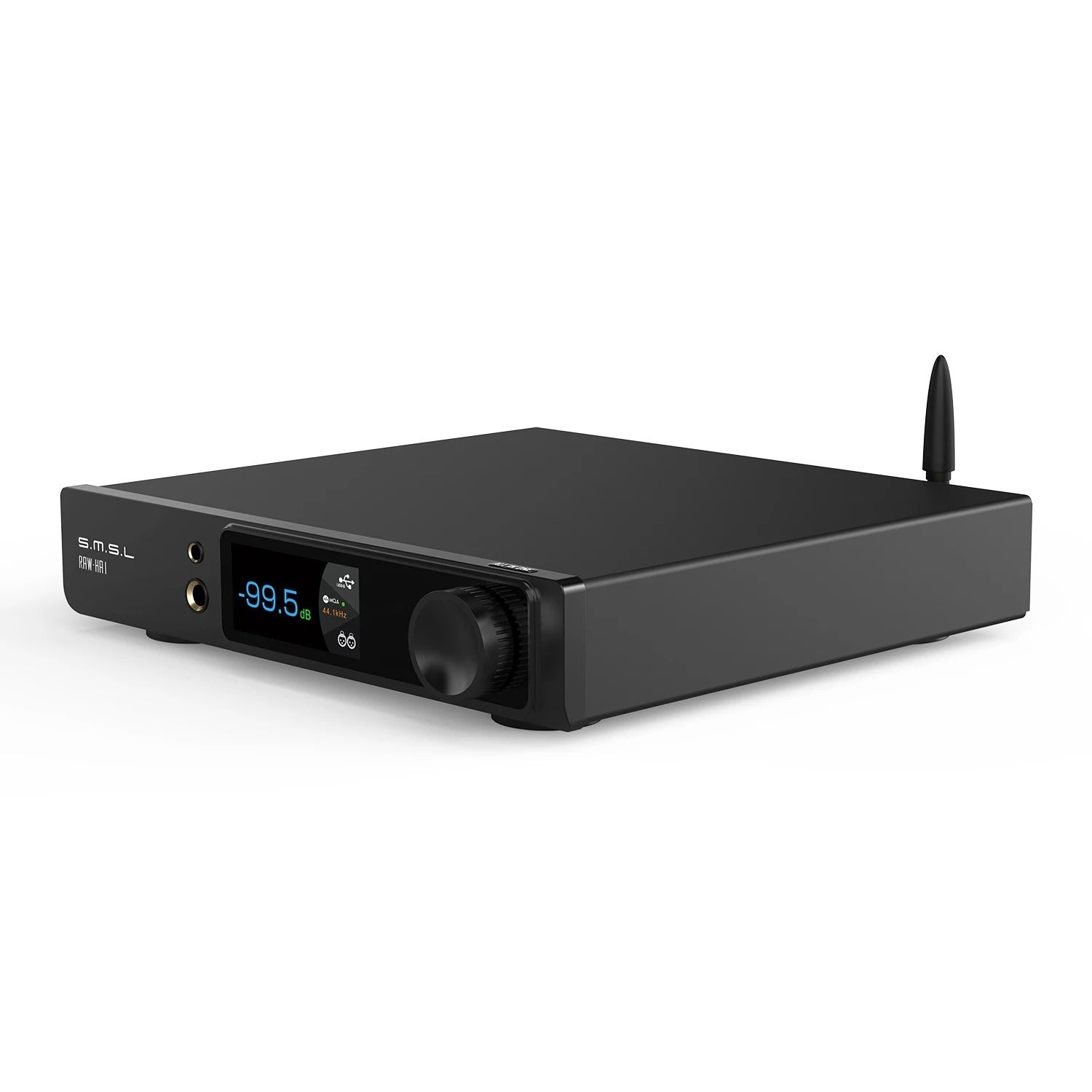

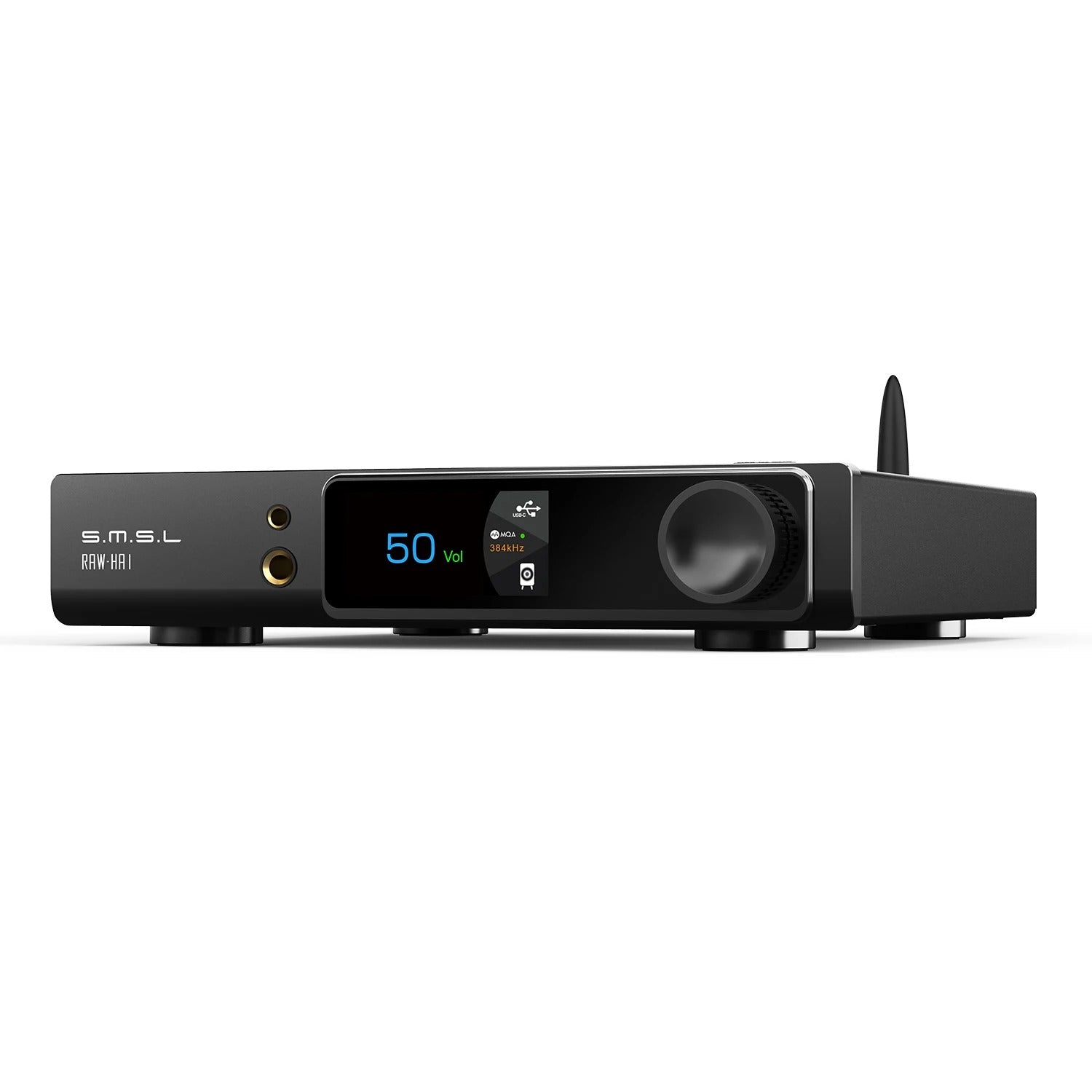

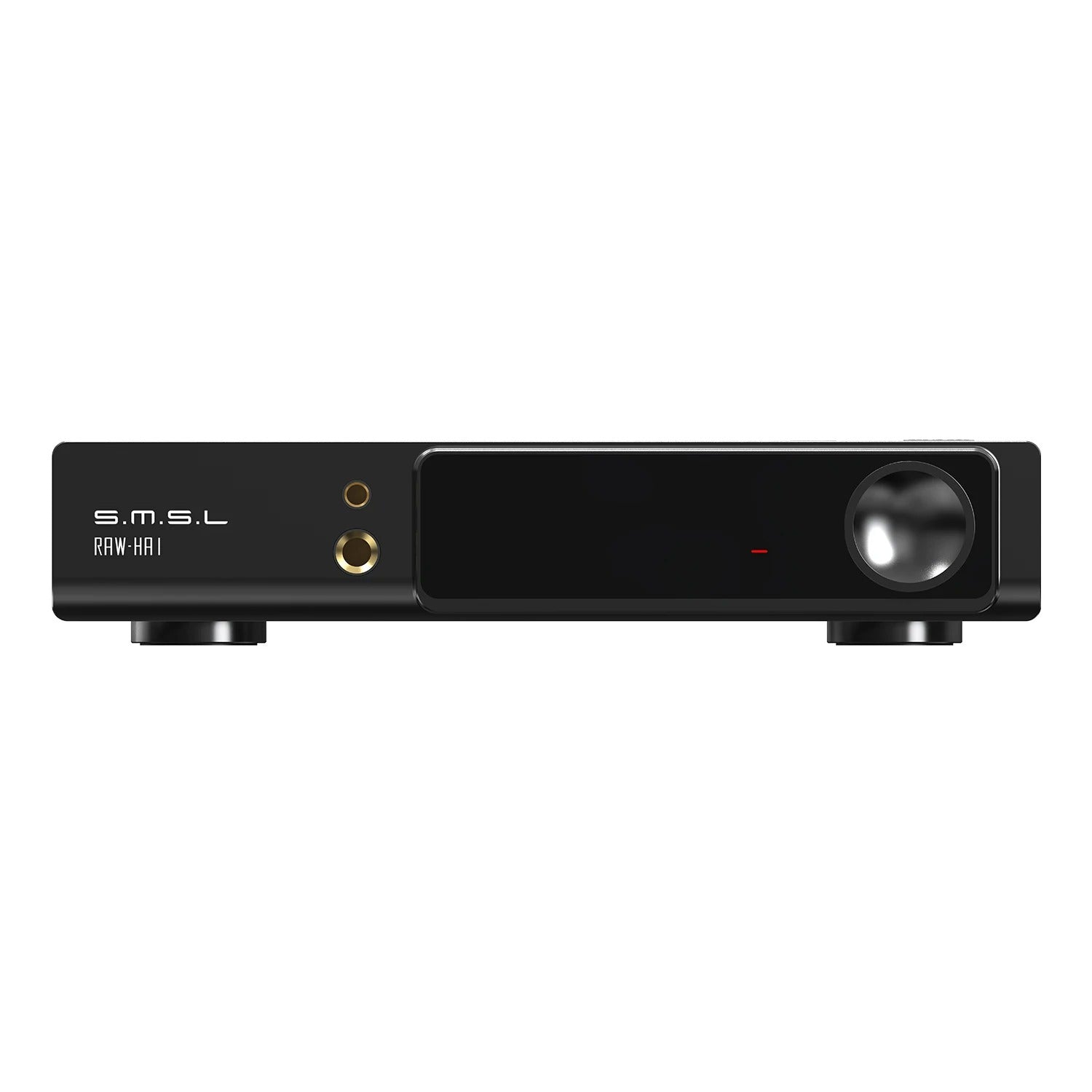

SMSL RAW-HA1 Desktop DAC, Headphone Amplifier & Speaker Amplifier
Experience Audio Excellence with Power, Precision, and Versatility
The SMSL RAW-HA1 Desktop DAC, Headphone Amplifier, and Speaker Amplifier sets a new benchmark in audio performance. Engineered with premium components and cutting-edge technology, this compact powerhouse delivers pristine sound quality, versatile connectivity, and intuitive usability for audiophiles and casual listeners alike. Whether you're streaming wirelessly via Bluetooth 5.1, decoding MQA master-quality files, or immersing yourself in high-resolution audio formats, the RAW-HA1 is designed to elevate every listening experience.
Key Features in Detail
1. Germany Infineon Digital Amplifier Chip
At the core of the RAW-HA1 is a Germany Infineon digital amplifier chip, renowned for its high-efficiency performance. This advanced component ensures clean, distortion-free sound with minimal energy consumption, providing both power and precision to your audio setup.
2. Studio-Quality Sound with MQA Support
With support for MQA and MQA-CD decoding, the RAW-HA1 reproduces the original studio recording with incredible fidelity. Experience music exactly as the artist intended, with every nuance and detail preserved.
3. High-End Cirrus Logic CS43131 DAC
Equipped with the Cirrus Logic CS43131 DAC chip, the RAW-HA1 delivers exceptional digital-to-analog conversion. This results in outstanding clarity and richness, revealing even the most subtle details in your music.
4. High-Resolution Audio Playback
The RAW-HA1 supports audio formats up to 32-bit/768kHz PCM and DSD256 via its 3rd-generation XMOS XU-316 USB interface, ensuring compatibility with a wide range of high-resolution files. Enjoy crystal-clear audio that brings your favorite tracks to life.
5. Wireless Freedom with Bluetooth 5.1
Stream music effortlessly from your devices with Bluetooth 5.1 connectivity. Supporting high-fidelity codecs like LDAC, AptX HD, SBC, and AAC, the RAW-HA1 ensures seamless wireless playback without compromising on sound quality.
6. Precision Volume Control with Japanese JRC Chip
Achieve perfect volume adjustments with the NJW1194 volume control chip by JRC. This premium component ensures minimal distortion, allowing you to fine-tune your listening experience with ease and precision.
7. Versatile Inputs for Any Audio Source

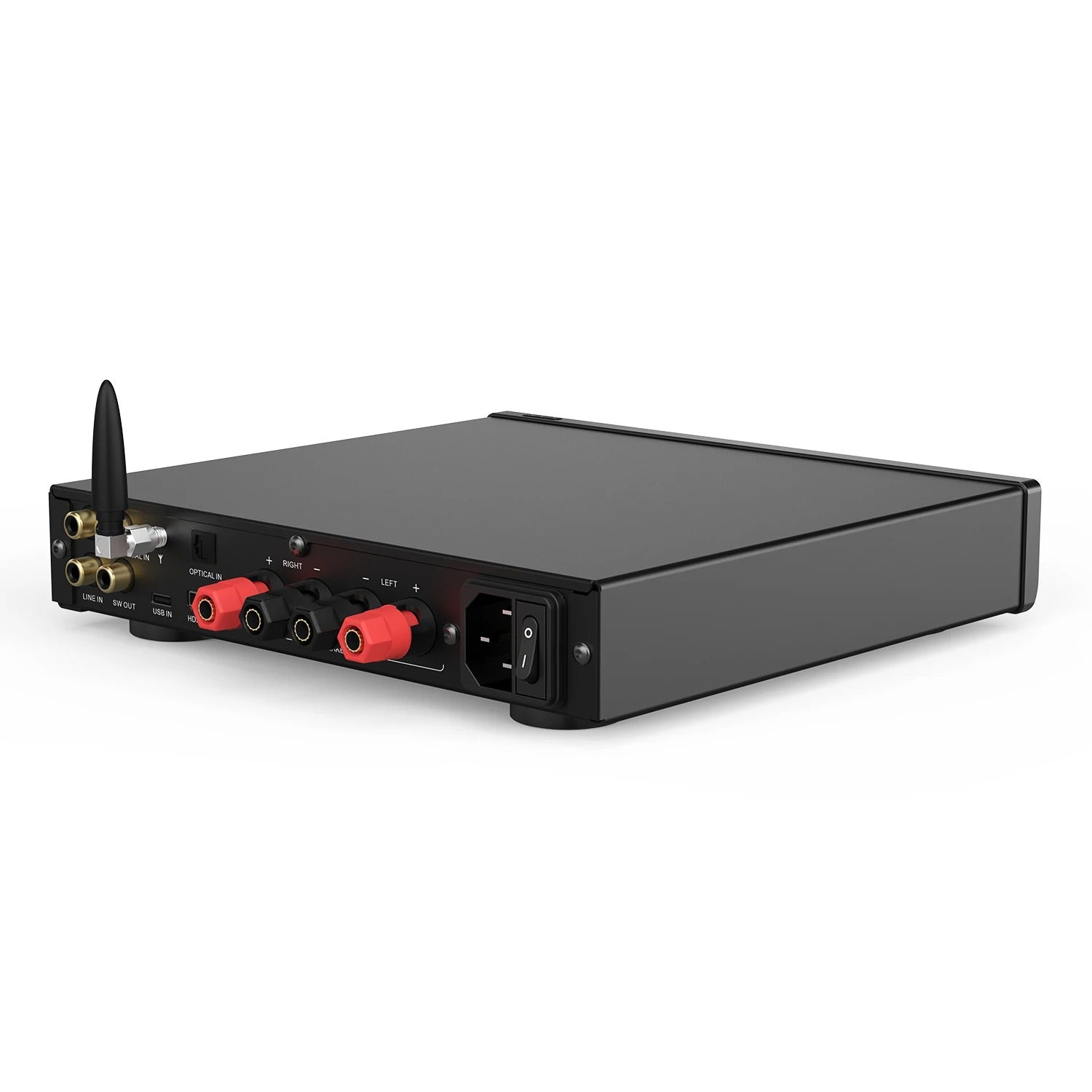

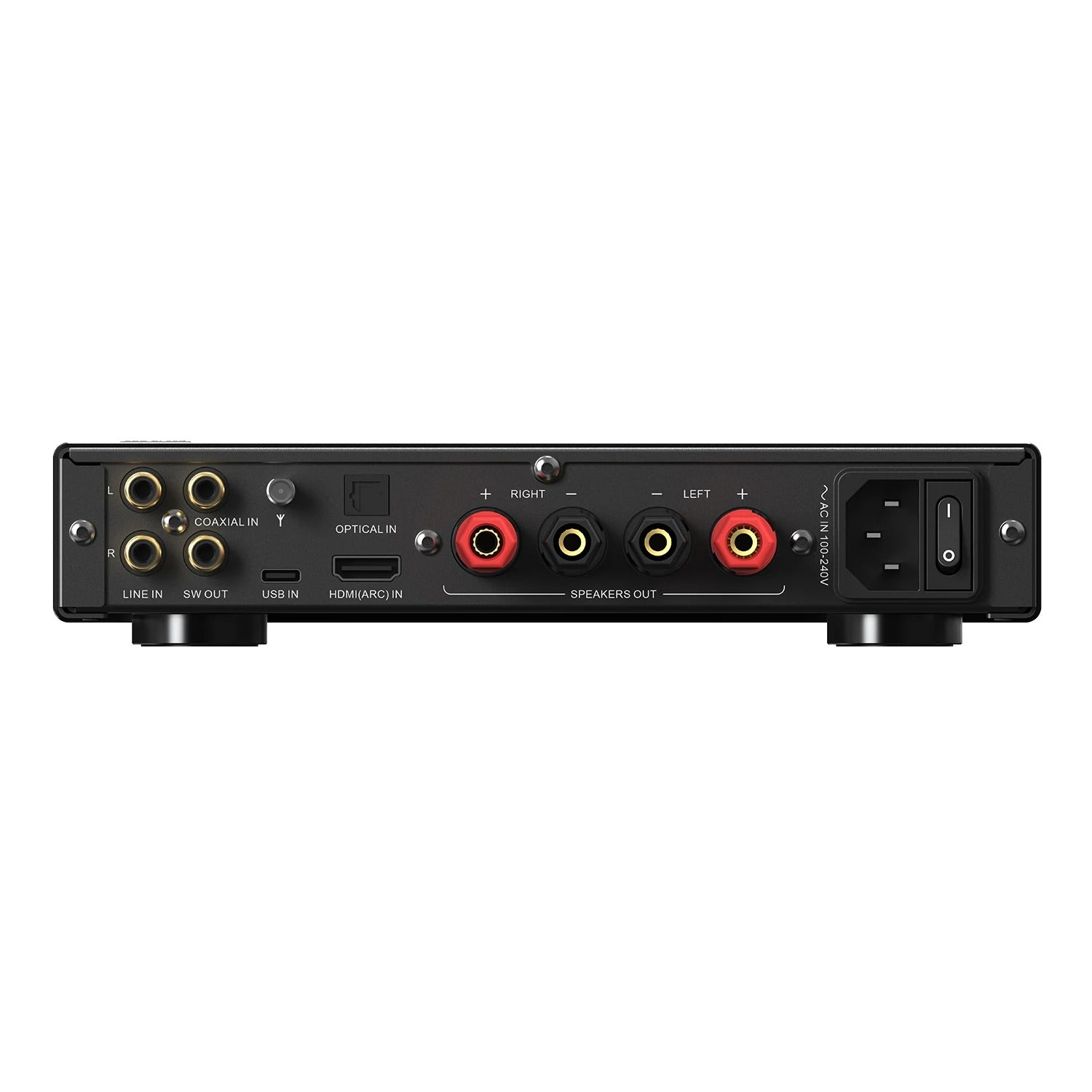

With multiple input options, including HDMI (ARC), RCA, USB, Optical, Coaxial, and Bluetooth, the RAW-HA1 adapts effortlessly to any audio source. Whether you're connecting your TV, computer, or smartphone, this amplifier integrates seamlessly into your setup.
8. Dual UI Design for Enhanced Usability
Choose between two intuitive user interfaces to suit your preferences. The RAW-HA1’s dual UI design makes navigation and control straightforward, even for beginners.
9. Premium Build with Sleek Tempered Glass Display
Crafted for durability and style, the RAW-HA1 features a scratch-resistant tempered glass display that combines elegance with practicality. Its minimalist design complements any modern audio setup.
10. Remote Control Convenience
Control your music, adjust volume, and switch inputs effortlessly with the full-function remote control, giving you complete command from the comfort of your chair.
Why Choose the SMSL RAW-HA1?
The SMSL RAW-HA1 is more than just a DAC and amplifier—it’s a gateway to experiencing your music collection as never before. From its state-of-the-art amplifier and DAC chips to its seamless wireless streaming capabilities and versatile input options, the RAW-HA1 delivers an exceptional listening experience across headphones, speakers, and more.
Whether you're an audiophile seeking high-resolution playback or a casual listener upgrading your setup, the RAW-HA1 offers the perfect balance of power, clarity, and convenience.
Product Highlights
- Germany Infineon digital amplifier chip for efficient and high-quality sound reproduction.
- Cirrus Logic CS43131 DAC for superior digital-to-analog conversion.
- 3rd-generation XMOS XU-316 USB interface for high-resolution PCM and DSD playback.
- Bluetooth 5.1 with LDAC and AptX HD support for high-fidelity wireless audio.
- MQA and MQA-CD decoding for studio-quality sound.
- NJW1194 volume control chip for precise adjustments with low distortion.
- Tempered glass display for durability and elegance.
- Dual UI design for personalized user experience.
- Remote control for effortless operation.
- Versatile inputs: HDMI (ARC), RCA, USB, Optical, Coaxial, and Bluetooth.















THD+N: 0.003%
SNR: 108dB
Channel Separation: 87dB
Input Sensitivity / Input Impedance: 245mV / 22kΩ
Output Power (Stereophonic):
4Ω: 165W x 2
8Ω: 85W x 2
USB Transmission: USB 2.0 (Asynchronous Transfer)
USB Compatibility: Windows 7/8/8.1/10/11, Mac OSX, Linux
MQA Decoder: USB, Optical, Coaxial
MQA-CD Decoder: Optical, Coaxial
Bit Depth:
USB: 1bit, 16-32bit
Optical/Coaxial: 1bit, 16-24bit
Sampling Rate:
USB (PCM): 44.1–768kHz
USB (DSD): 2.8224–11.2896MHz
Optical/Coaxial (PCM): 44.1–192kHz
Optical/Coaxial (DSD): DSD64 (DoP)
Bluetooth Specification: 5.1 (supports SBC, AAC, aptX, aptX HD, LDAC)
Power Consumption: 40W (Normal Volume)
Size: 8.62 x 1.77 x 7.48 inches (219 x 45 x 190 mm)
Weight: 3.42 lbs (1.55 kg)
What's included
SMSL RAW-HA1 Headphone Amplifier
Full-function remote control
Power cable
User manual
Warranty Period: 1 Year from the date of Invoice
Covered: Manufacturing Defects Only
Warranty Form: https://www.theaudiostore.in/pages/warranty-claim-form
SMSL specializes in high-quality audio DACs, headphone amplifiers, and power amplifiers, with their own research, development, manufacturing, and marketing teams.
