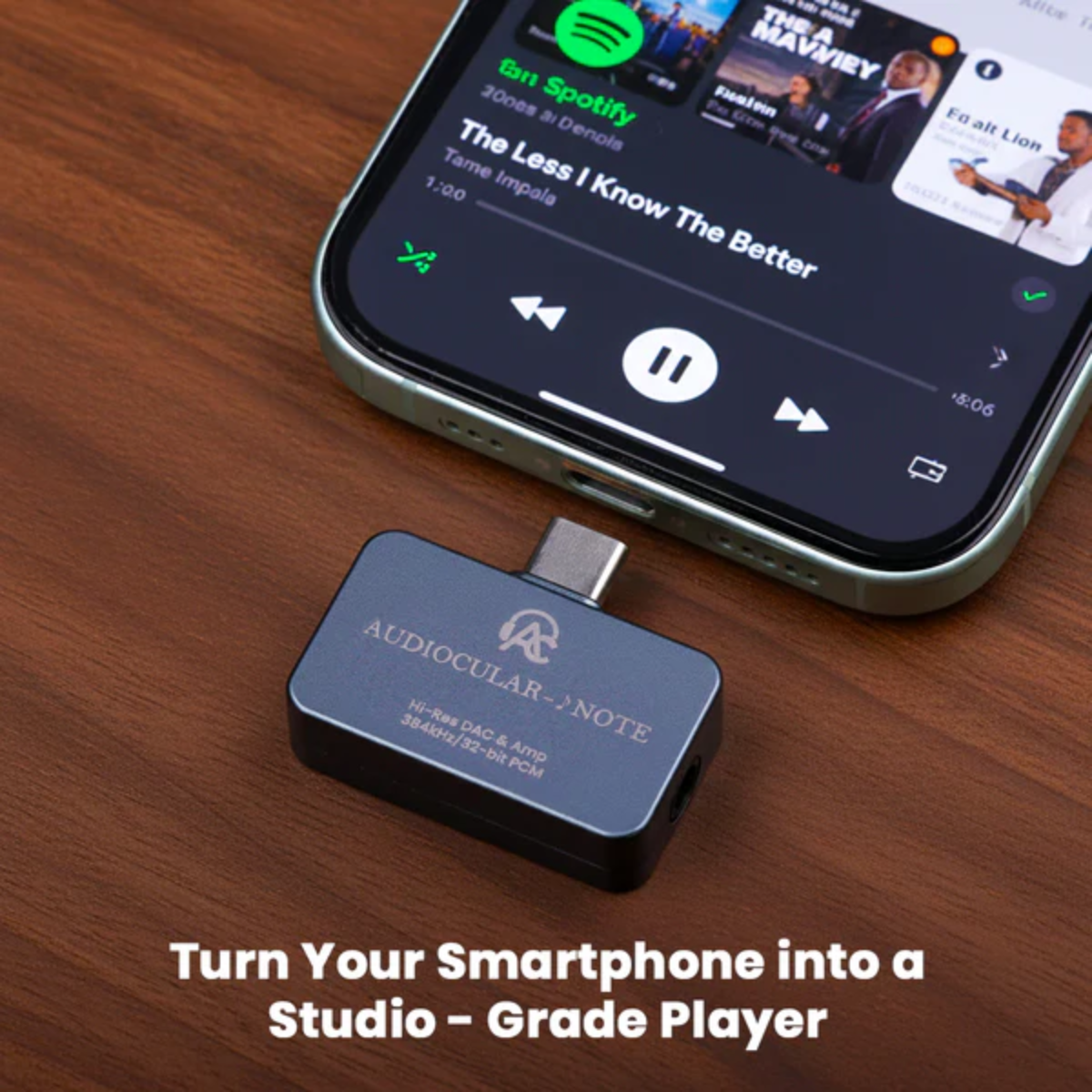

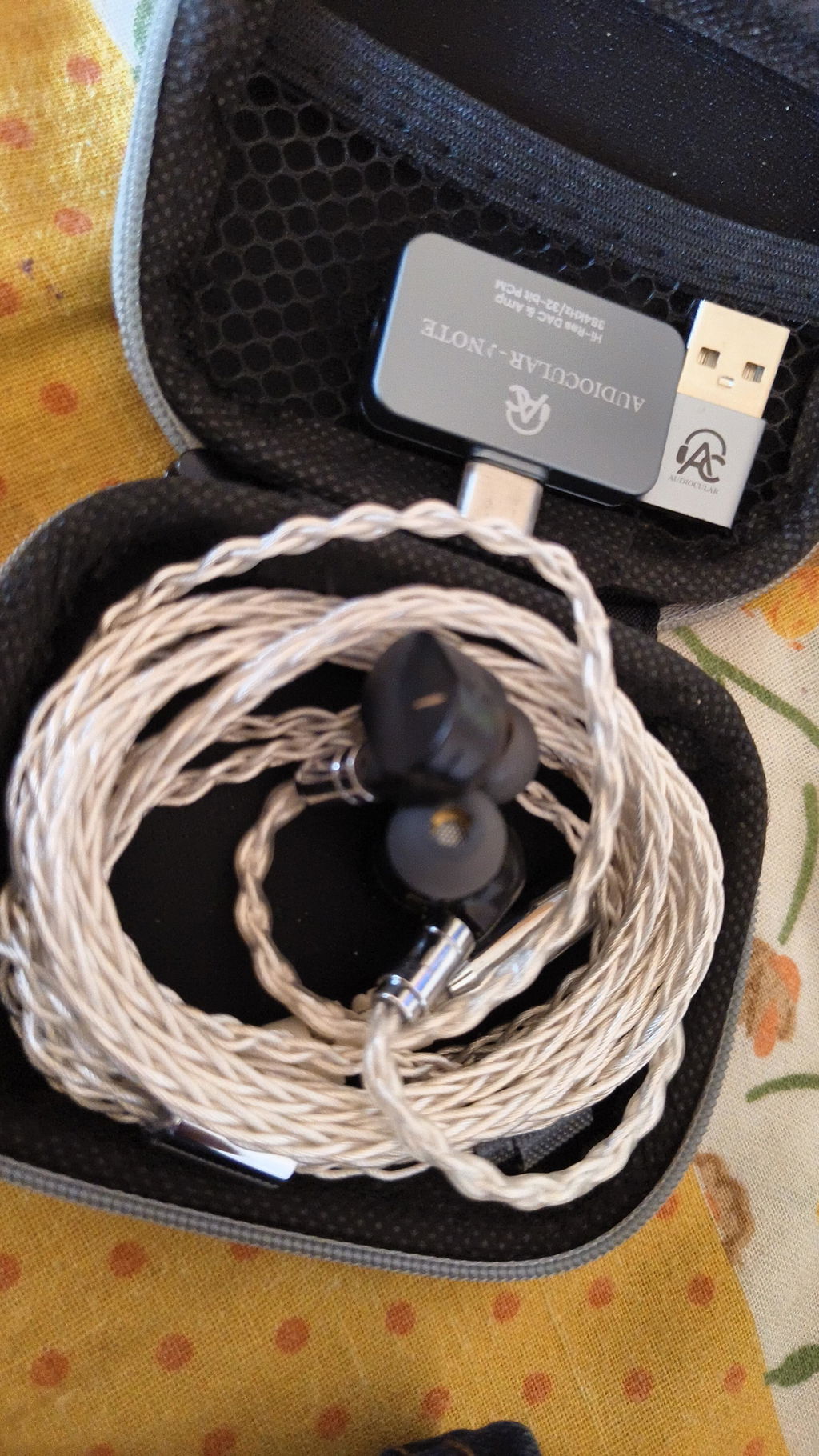

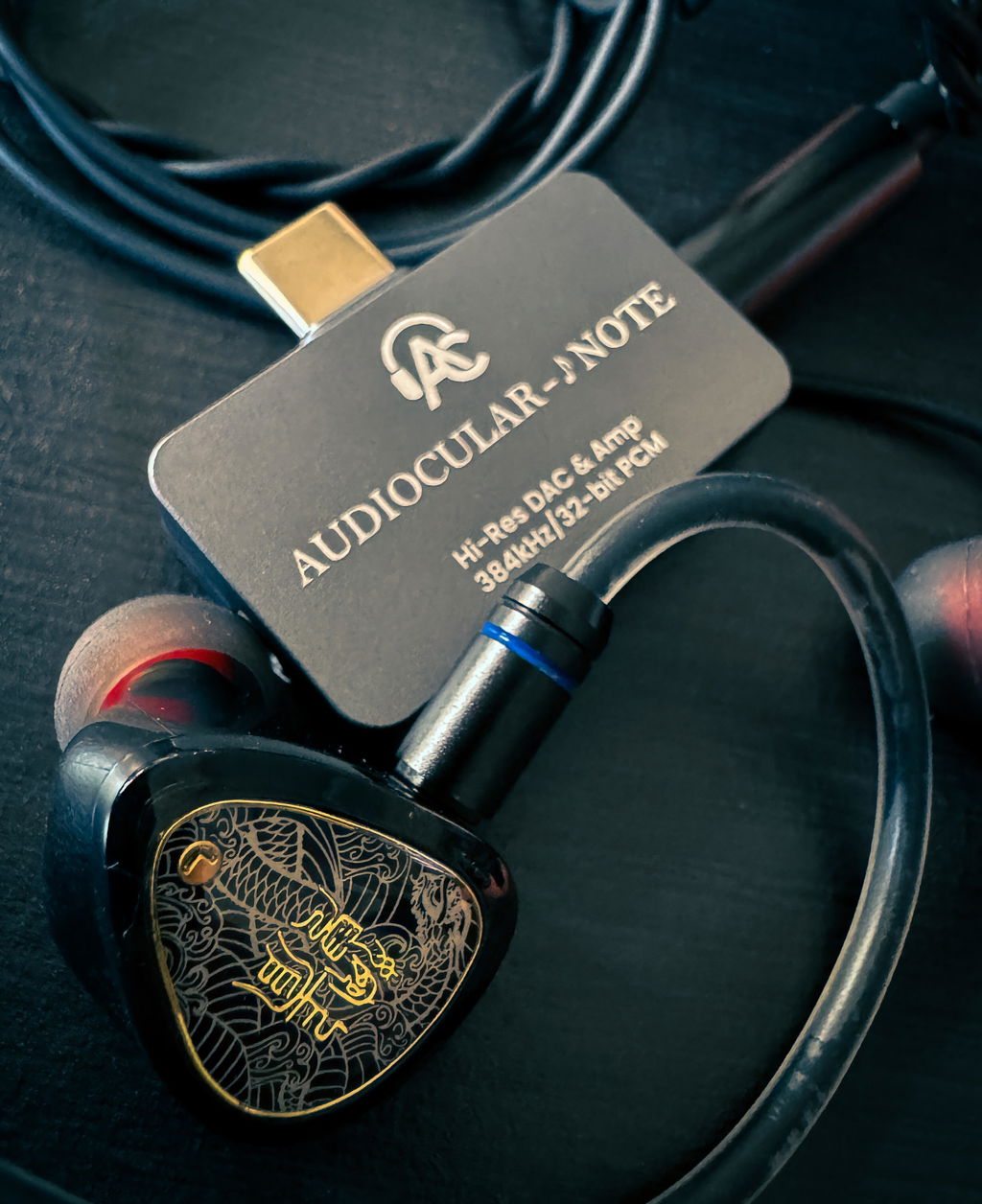

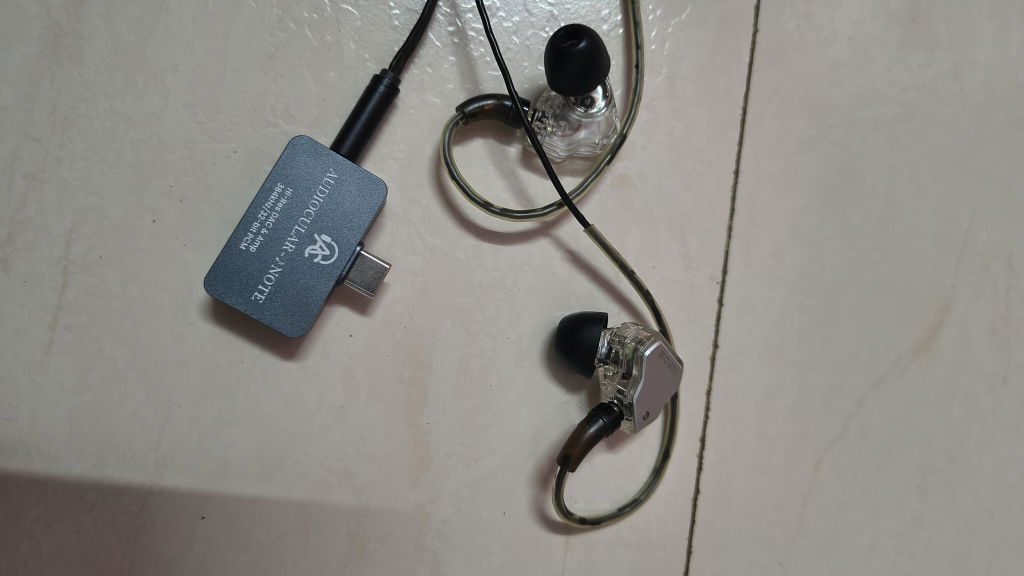

The AUDIOCULAR Note Hi-Res Portable DAC Dongle is a next-generation digital-to-analogue converter and headphone amplifier engineered for audiophiles who demand uncompromised sound quality on the go. Built around the KT02H20 high-performance DAC chipset paired with the OPA97220 precision headphone amplifier, the NOTE delivers true high-resolution audio with exceptional clarity, dynamic range, and ultra-low distortion.

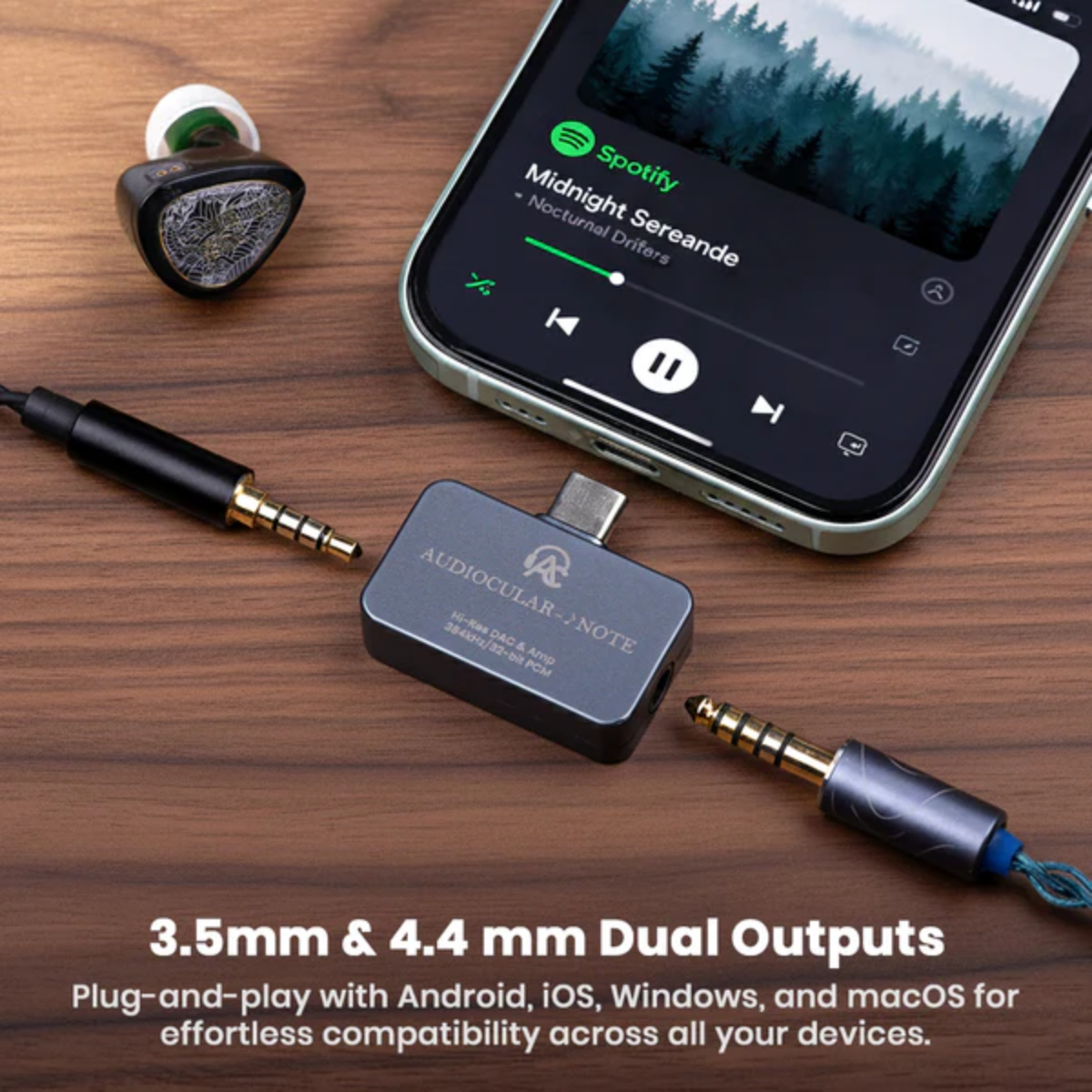

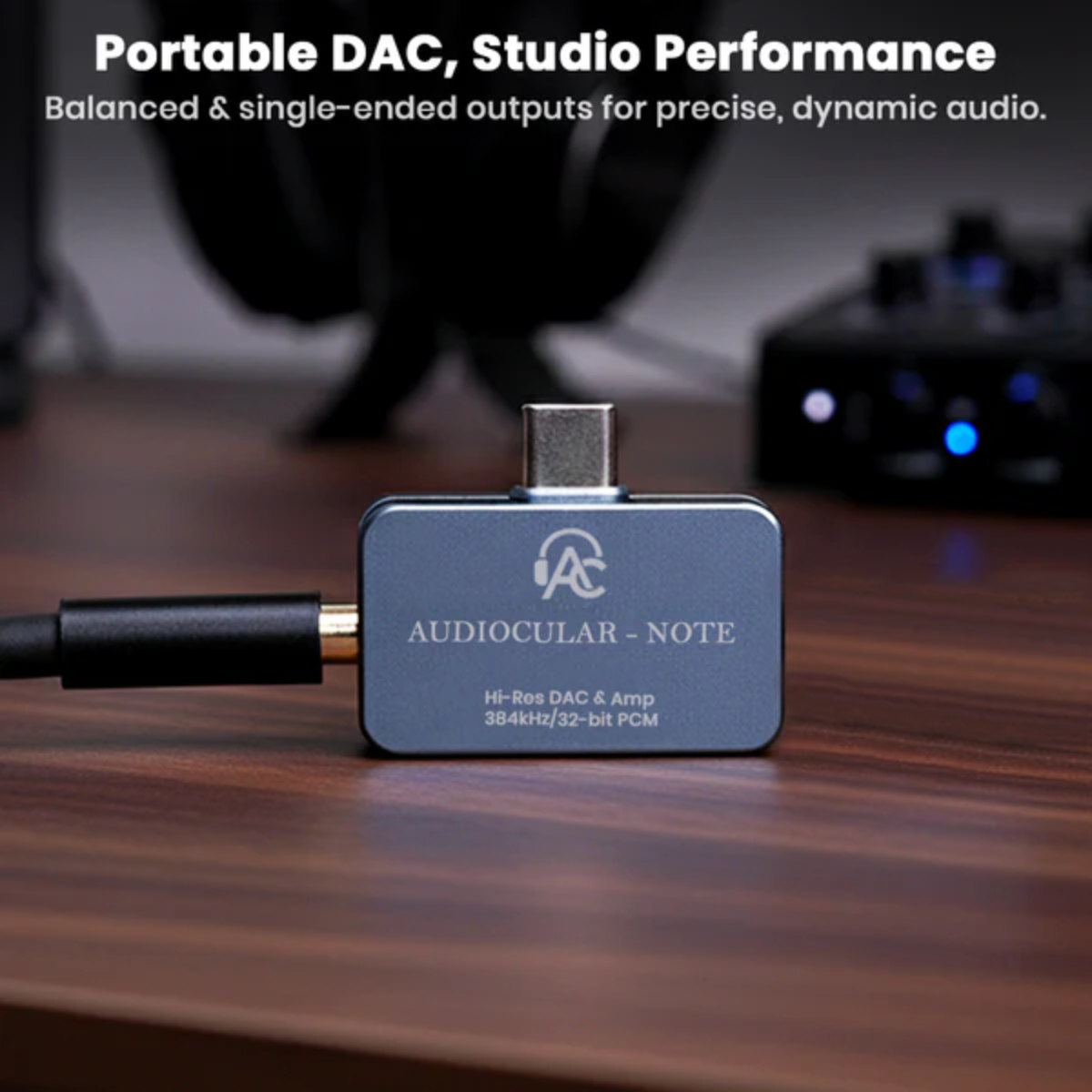

Featuring dual headphone outputs—4.4mm balanced and 3.5mm single-ended— it provides impressive driving power for both sensitive IEMs and demanding full-size headphones. With PCM decoding up to 32-bit/384kHz, it reproduces music with studio-grade detail, accurate imaging, and a clean, natural sound signature ideal for critical listening.

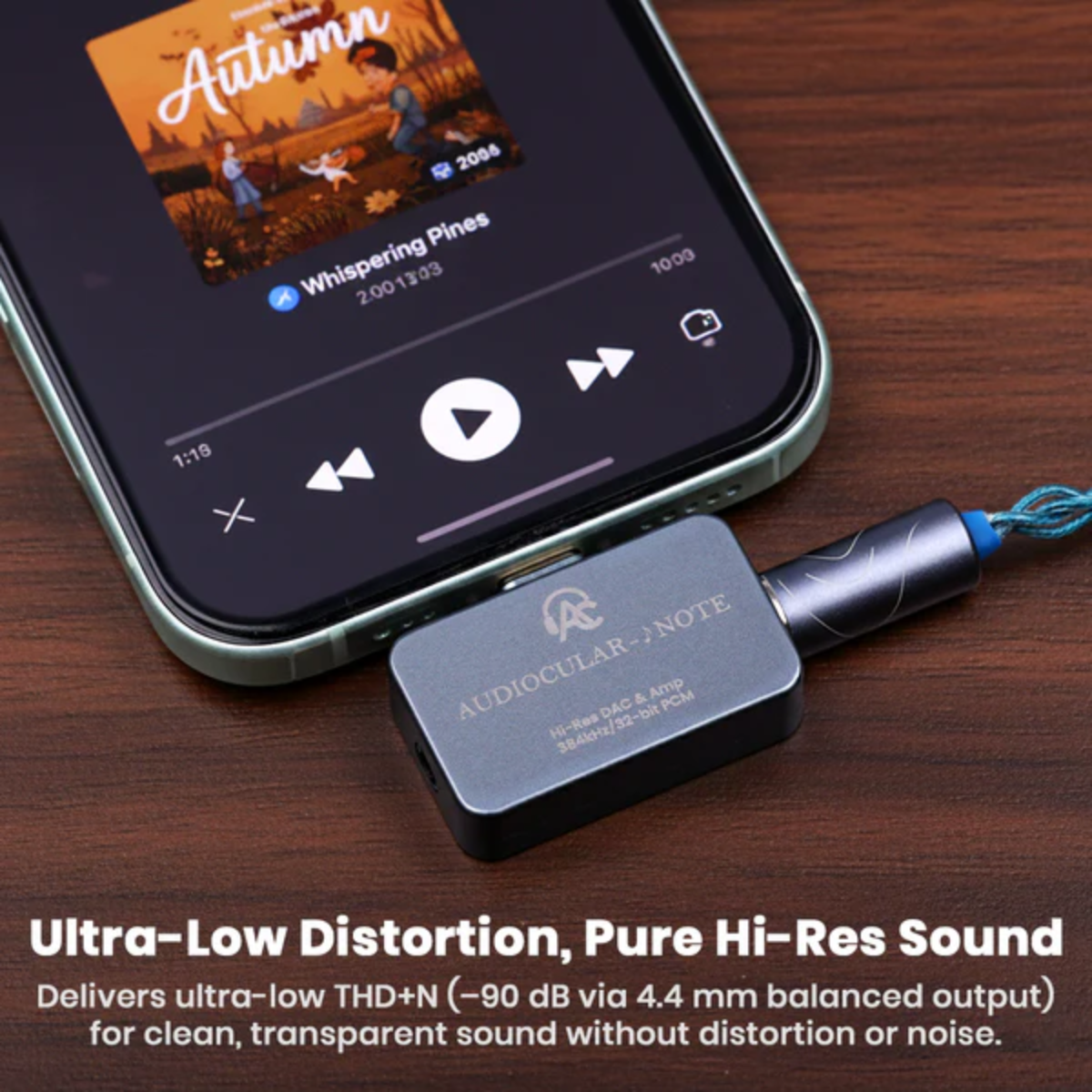

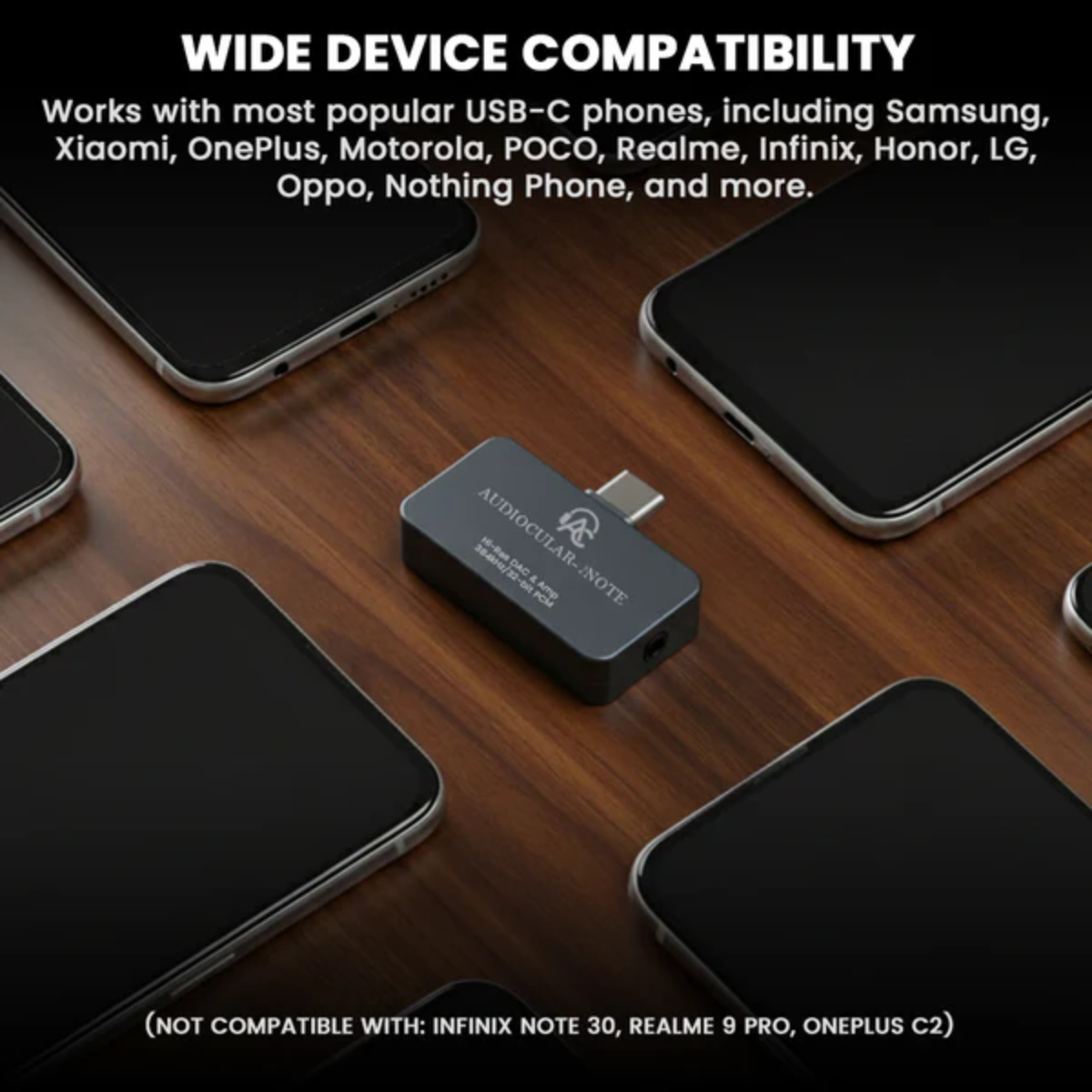

Designed for universal plug-and-play compatibility, the NOTE works seamlessly with Android, iOS, Windows, macOS, and HarmonyOS without requiring drivers. Its refined audio circuitry, optimized power management, and ultra-low THD+N performance ensure a distortion-free listening experience with a 100dB signal-to-noise ratio and -90dB crosstalk suppression (balanced).
With support for the My AUDIOCULAR App, users get access to 5-band PEQ and a built-in community preset ecosystem for sharing and discovering custom sound tunings.

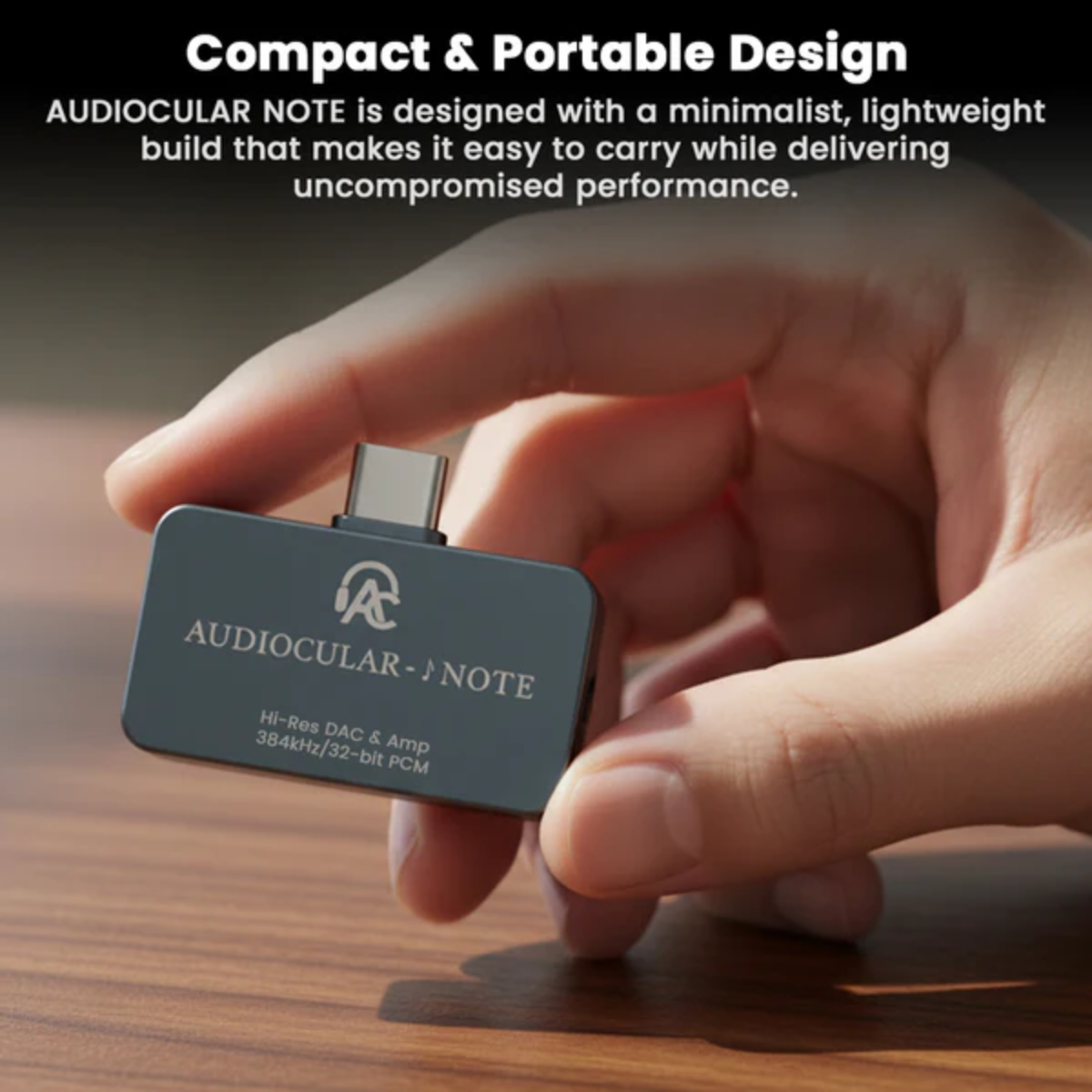

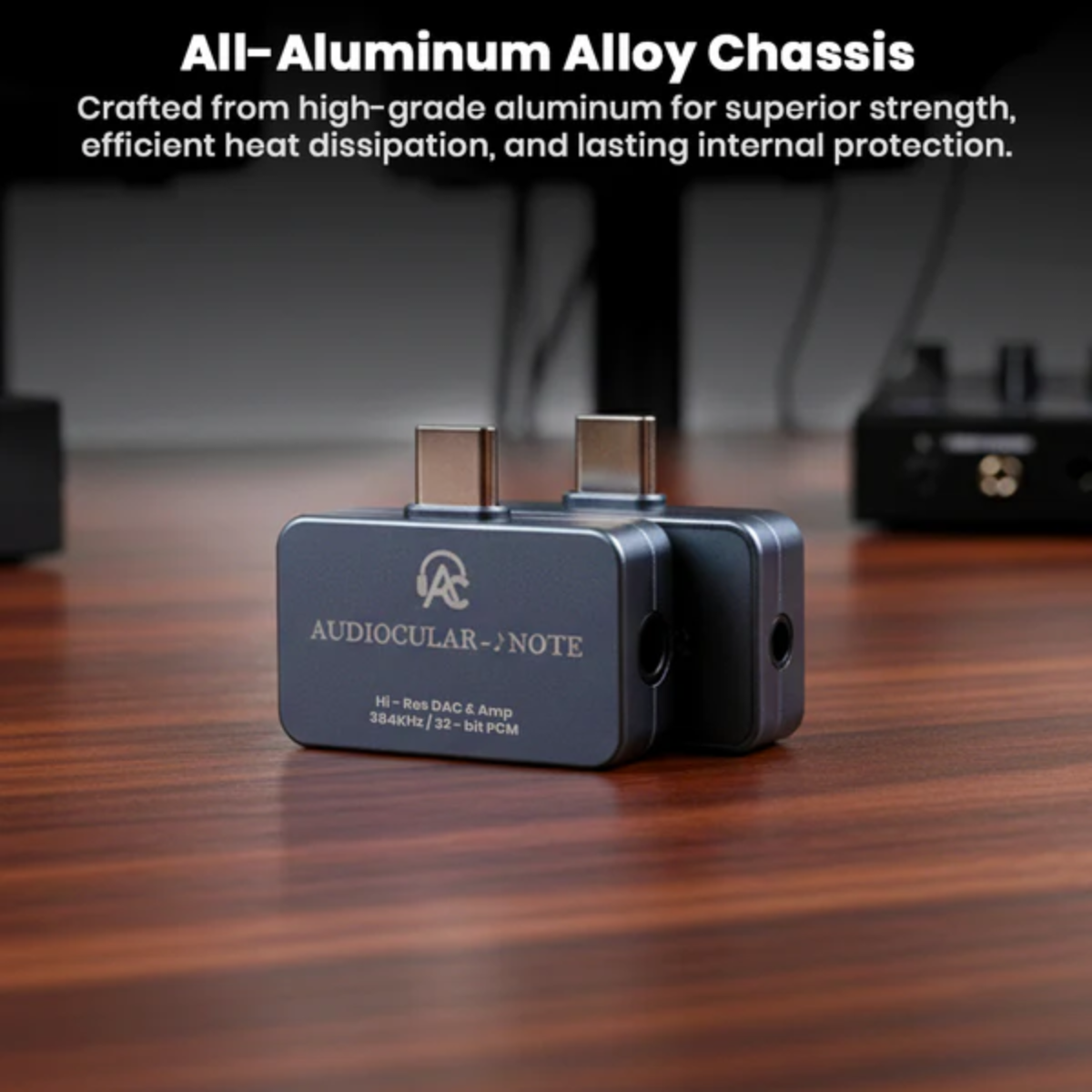

Crafted from a premium all-aluminum alloy chassis, the NOTE combines durability, heat dissipation, and a sleek minimalist finish in a compact and highly portable form factor—perfect for everyday audiophile listening anywhere, anytime.
Specifications
| Brand |
AUDIOCULAR |
| Model Name |
Note |
| Product Type |
Hi-Res Portable DAC Dongle |
| DAC Chipset |
KT02H20 |
| Amplifier Chipset |
OPA97220 |
| Headphone Output |
3.5mm Single-Ended / 4.4mm Balanced |
| Input |
USB-C |
| Protocol |
USB Audio Class 2.0 (UAC2.0) |
| Sampling Rate |
Up to 32-bit / 384 kHz PCM |
| Output Power |
105mW @ 32Ω (both outputs) |
| Output Voltage |
1.15–1.35V RMS |
| THD+N |
–75dB (4.4 & 3.5mm) |
| SNR |
100dB |
| Dynamic Range |
95dB |
| Crosstalk Suppression |
–90dB (4.4mm) / –55dB (3.5mm) |
| Frequency Response |
20Hz–20kHz (±3dB) |
| Recommended Impedance |
16–100Ω |
| Operating Voltage |
4.75–5.25V DC |
| Current Consumption |
35mA standby / 90–110mA active |
| Connector Type |
USB-C Male |
