Description
Fosi Audio ZD3 Fully Balanced DAC & Preamplifier – High-Resolution Audio for Audiophiles
Uncompromising Audio Quality

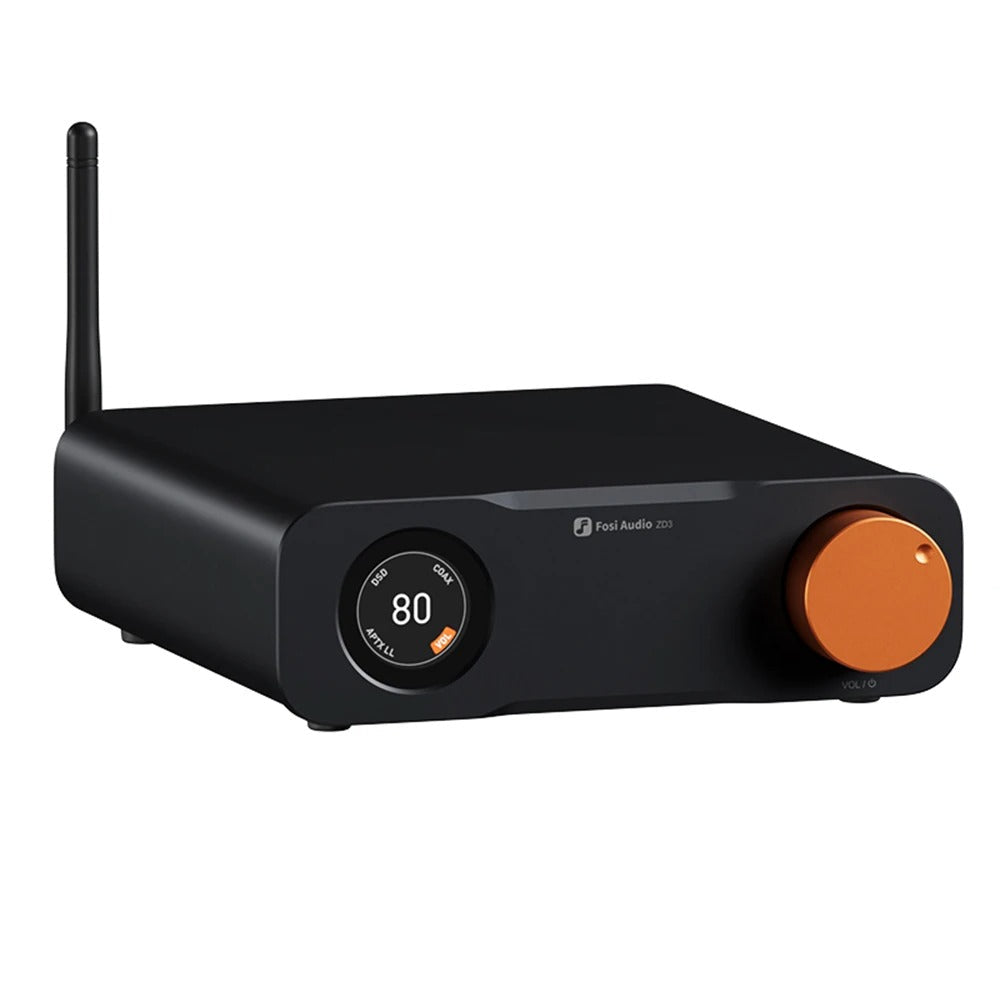

The Fosi Audio ZD3 is a flagship fully balanced DAC & preamplifier engineered to deliver pure, high-fidelity sound. Featuring the cutting-edge ES9039Q2M DAC chip, it provides rich detail, low distortion (THD+N <0.00008%), and an immersive listening experience.
Versatile Connectivity for Ultimate Flexibility

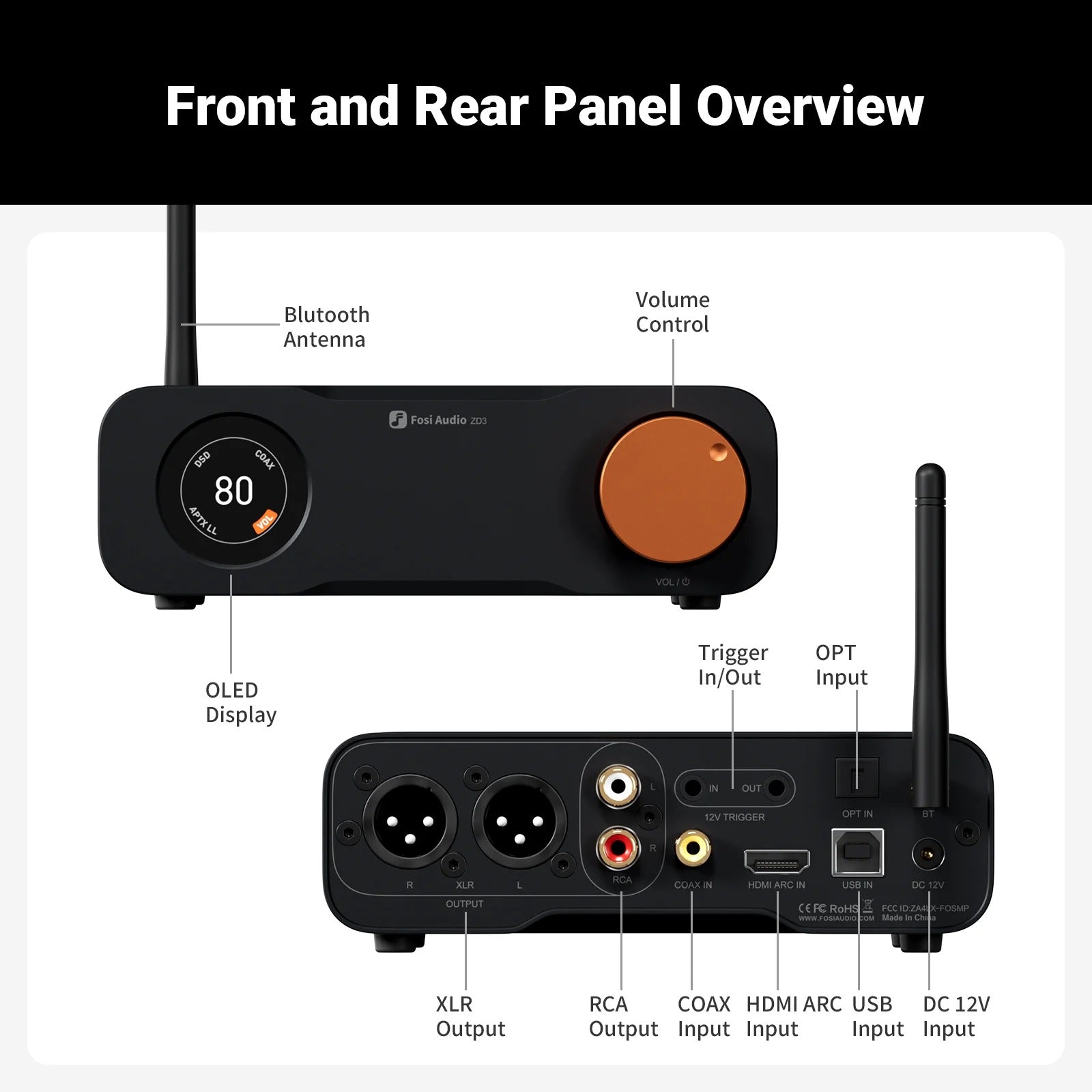

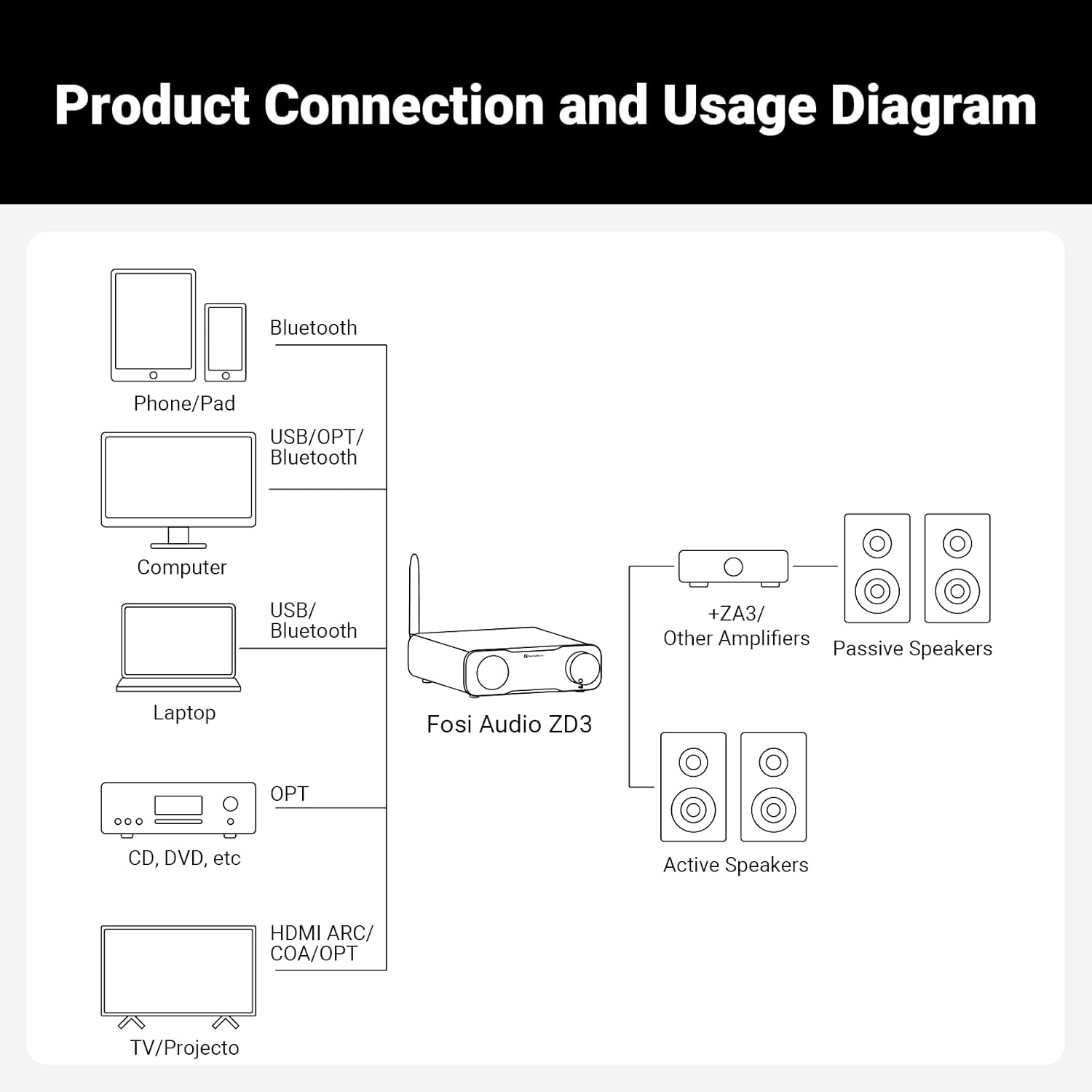

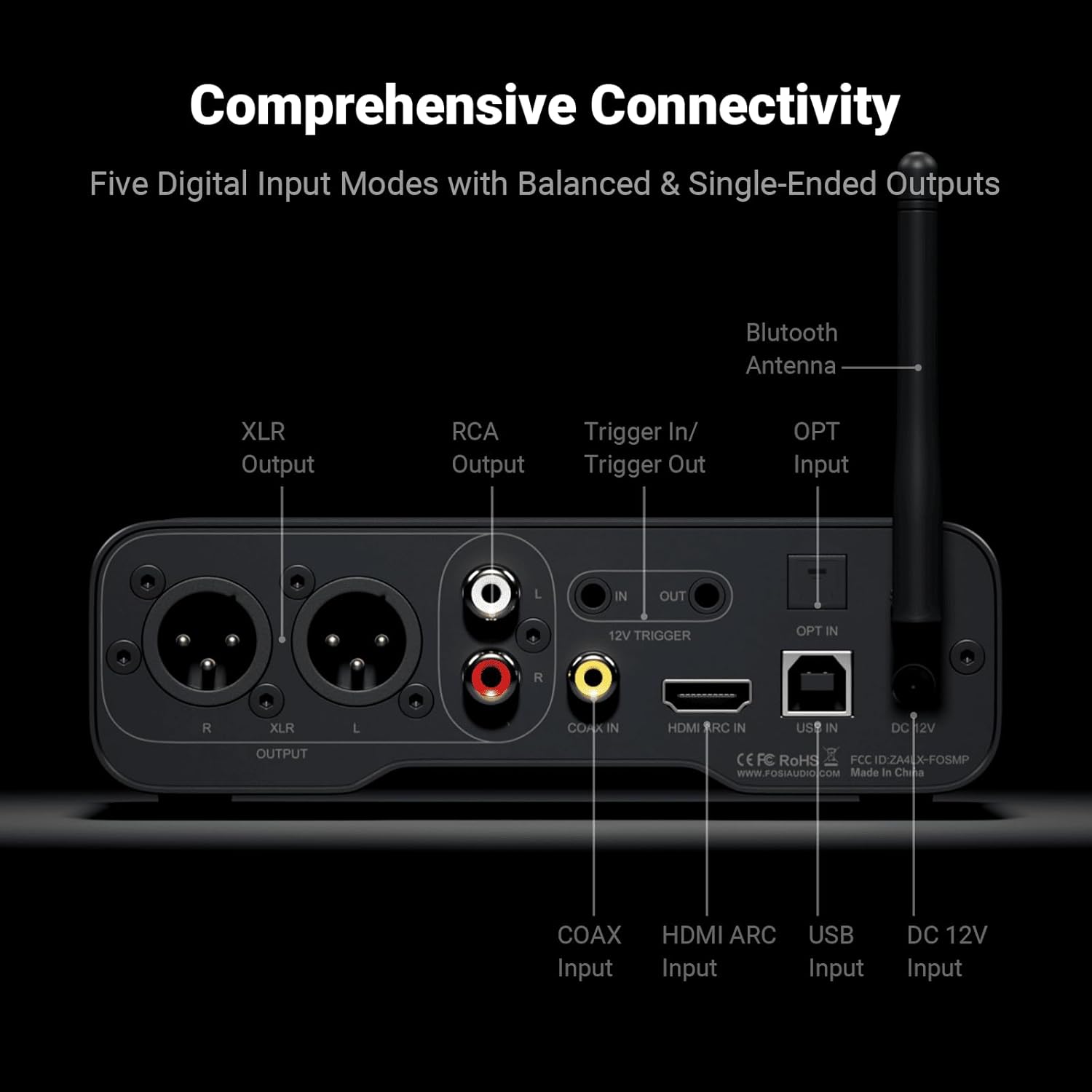

Equipped with multiple input and output options, the ZD3 adapts to any audio setup:
✔ Inputs: USB, HDMI ARC, Optical, Coaxial, Bluetooth 5.1 (SBC, AAC, aptX, aptX HD)
✔ Outputs: XLR (balanced), RCA (unbalanced)
Premium Components for Superior Sound

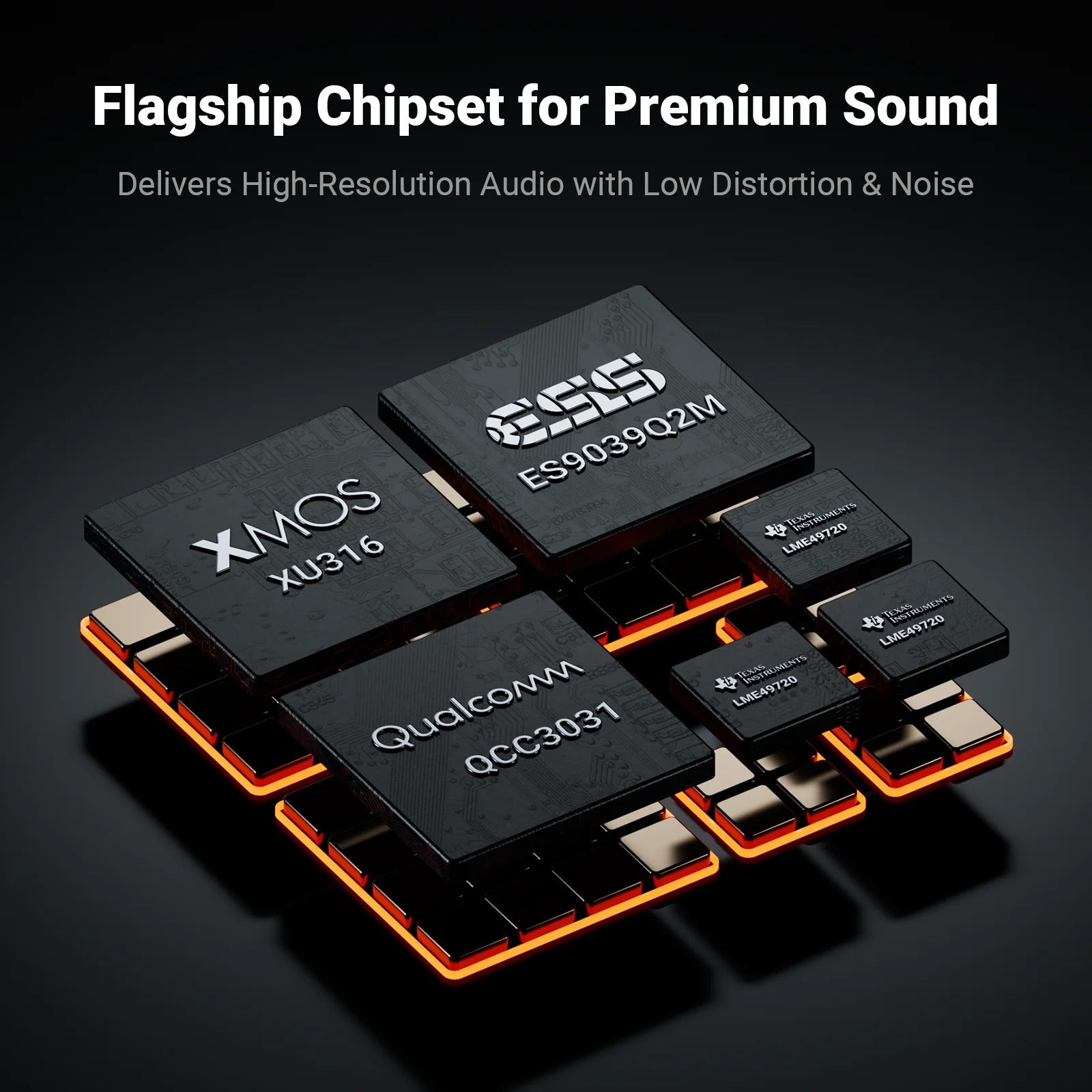

Built with audiophile-grade components, including XMOS XU316, QCC3031, and LME49720 op-amps, the ZD3 supports PCM 32bit/768kHz and DSD512 for unmatched clarity. The fully balanced output design minimizes noise and interference, ensuring pure sound reproduction.
Seamless Wireless Streaming
Enjoy hi-res Bluetooth audio with support for aptX HD, delivering low-latency, lossless transmission.

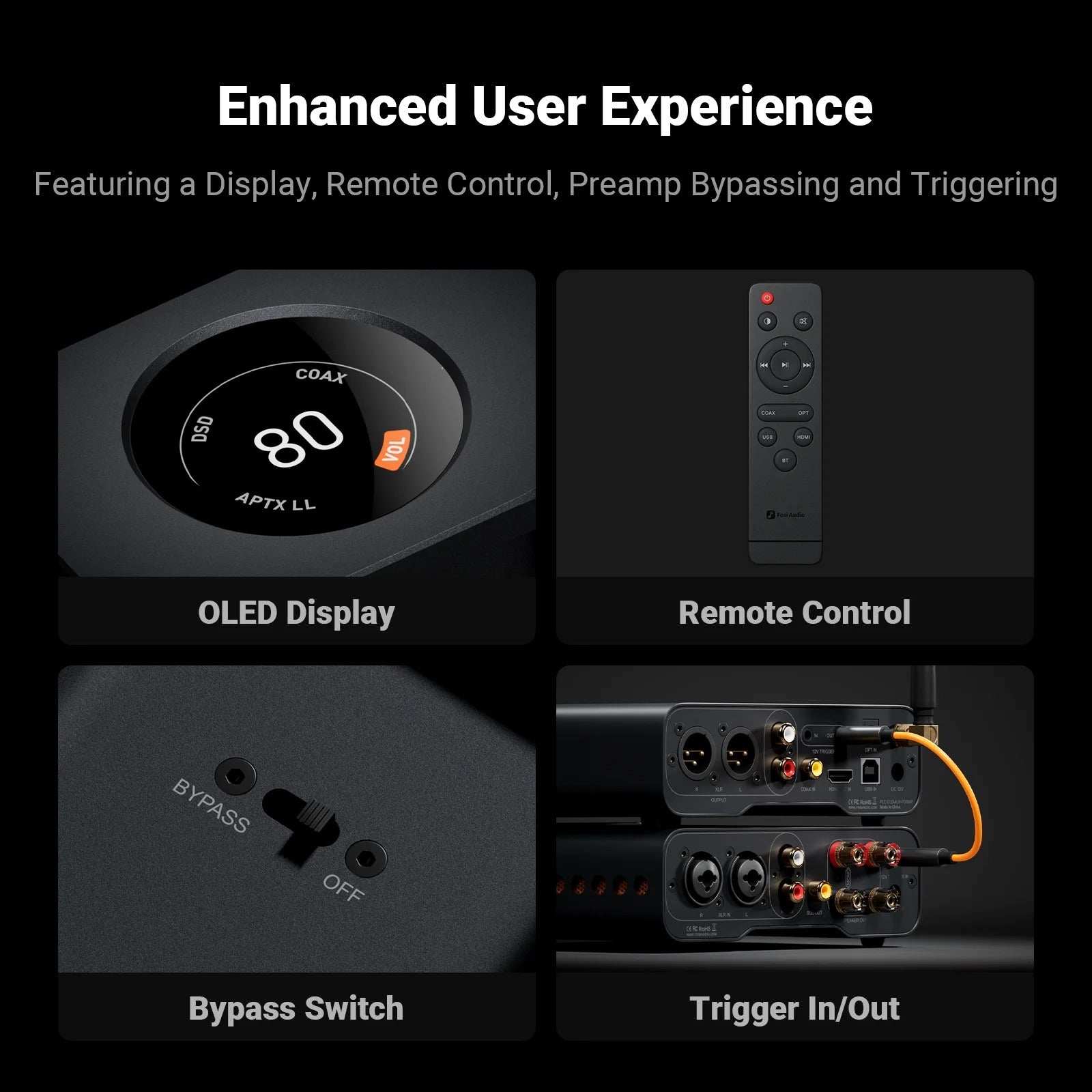

User-Friendly Features
✔ 1.5-inch OLED Display: Provides real-time audio status for effortless control.
✔ Swappable Op-Amp Design: Customize your sound with replaceable DIP8 op-amps.
✔ Bypass Mode: Direct signal transmission for high-purity output.
✔ 12V Trigger In/Out: Enables automatic power syncing across your audio setup.
✔ Compact & Elegant: Matches the Fosi Audio ZA3 amplifier for a seamless audio system.
Important Note for LG TV Users:
A known issue with LG TVs and HDMI-CEC may cause unexpected power cycles. Disabling HDMI-CEC is recommended while we work on a solution.
🔊 Upgrade your audio experience with the Fosi Audio ZD3 – where precision meets power!
Chip Set: XMOS XU316 + ESS 9039Q2M + QCC3031 + LME49720
Maximum Sampling Rate:
USB: PCM 32bit/768kHz; DSD512
OPT/COAX: PCM 24bit/192kHz
Bluetooth: PCM 24bit/48kHz
Output Level:
XLR: 5Vrms RCA: 2.5Vrms
Input Mode:USB, HDMI (ARC), Coaxial, Optical, Bluetooth
Output Mode: XLR, RCA
SINAD: 126dB
THD: ≥120dB
THD+N: <0.00008%
Dynamic Range: ≥123dB
Noise Floor: ≤2μV
Bluetooth Version: 5.0
Bluetooth Connection Distance: ≥13m
Bluetooth Transmission Audio Format: aptX HD, aptX, AAC, SBC
Power Supply: DC 12V 1.5A
USB Compatible Devices: Windows 7, 8, 8.1, 10, 11 (Some require drivers; please refer to the user manual)Mac OS X, Linux (No driver required)

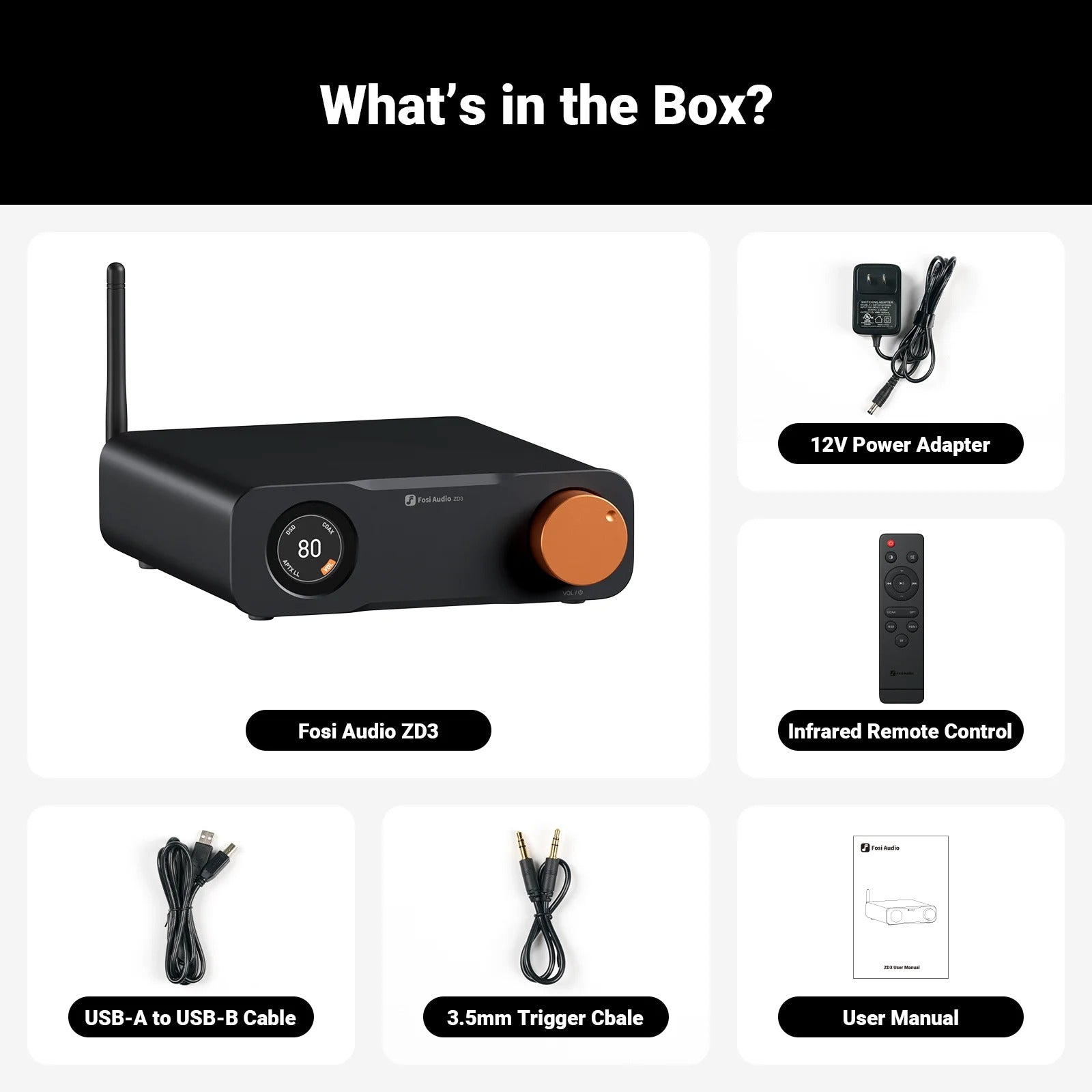

In The Box
DAC ZD3 *1
12V Power Adapter *1
Infrared Remote Control *1
USB-A to USB-B Cable *1
3.5mm Trigger Cable *1
USER MANUAL *1
Warranty Period: 1 Year from the date of Invoice
Covered: Manufacturing Defects Only
Warranty Form: https://www.theaudiostore.in/pages/warranty-claim-form
Cable: 1-month warranty only for manufacturing defects only
Fosi Audio is a dynamic brand dedicated to providing the most comprehensive range of Hi-Fi audio products in the market. We cater to passionate audiophiles by offering Hi-Fi products, DIY kits, and expert guidance, ensuring an immersive audio experience. Beyond a mere transaction, we foster enduring relationships with our clients, supporting them throughout their audio journey.
Our diverse product lineup includes the Hi-Fi power amplifier, pre-amplifier, headphone amplifier, DAC, music player, Bluetooth receiver, DIY board, DIY chassis, and an array of DIY kits. These meticulously crafted offerings embody our commitment to exceptional sound quality and innovation.
Established in China in 2017, Fosi Audio was founded by a team of devoted audiophiles. Our products have gained significant popularity within the Chinese DIY audio community, amassing a large and dedicated following. To expand our reach beyond borders, we launched this website in 2017 and began offering a selection of products on Amazon under the name "Fosi audio." However, please note that many of our outstanding products are not yet available on this website or Amazon. If you cannot find what you're looking for, simply reach out to us via email, and we will be delighted to assist you in finding the perfect product to meet your needs.
At Fosi Audio, we are not just a brand; we are your partner in achieving audio excellence. Join us on this immersive sonic journey and experience the true essence of Hi-Fi audio.
