Description

Android Lossless Digital Music Player

35hrs extra long play time | 4.7” high-resolution large display | In-house researched HiBy OS | Open Android OS | Systemwide SRC bypass | HiByLink remote control | 2.5 / 3.5 / 4.4mm all ports compatible | MQA 16x | Two-way Bluetooth | QC3.0 quick charging

A-class class-A amplification

Employing flagship-grade class-A amplification in this mid-tier android DAP, the R5 utilizes Class A discrete balanced amplification circuitry, capable of continuous high power output, with plentiful energy reserves for all music genres. Converting power with ease for the most dynamic compositions, the sound is clear and full.

Discrete output stage

With 4 independent channels of push-pull amplification with 270° conduction angles constructed of discrete componentry, including 8 high powered paired bipolar transistors, the R5 provides excellent current output power and control over variable loads. Enable Class A headamp mode for class-beating audio performance! THD is down at 0.0006% at the amplified output for unparalleled realism.

Dual High-Performance DACs for astonishing music resolution

Dual ES9219C DACs natively support DSD256, PCM768kHz/32bit high-res formats, with SNR of 130dB and THD+N down below -112dB. Presenting a highly accurate output voltage ensures the most accurate signal is given to the class-A amp section for amplification; also supports integrated DAC-amp output (economy mode) for excellent low power consumption and extra-long playtime.

Dual independent crystal oscillators, FPGA clock algorithm

Utilizing dual independent audiophile-grade crystal oscillators at 45.158MHz and 49.152MHz provides high precision timing for all audio events in your music.

Cost-no-object audio componentry naturally lays the path to quality sound

Employing 163 high-precision resistors, 19 Panasonic tantalum POSCAPs, and 4 ELNA electrolytic capacitors maximally suppress power supply ripple, yielding silky black backgrounds.

Long playtime and great sound

With 4500mAh battery yielding over 35 hours of playtime* (*in economy mode), go for days without worrying about a recharge! 10 hours playtime available even in Class-A amplification mode for maximal enjoyment of class-breaking dynamic control and sound quality.

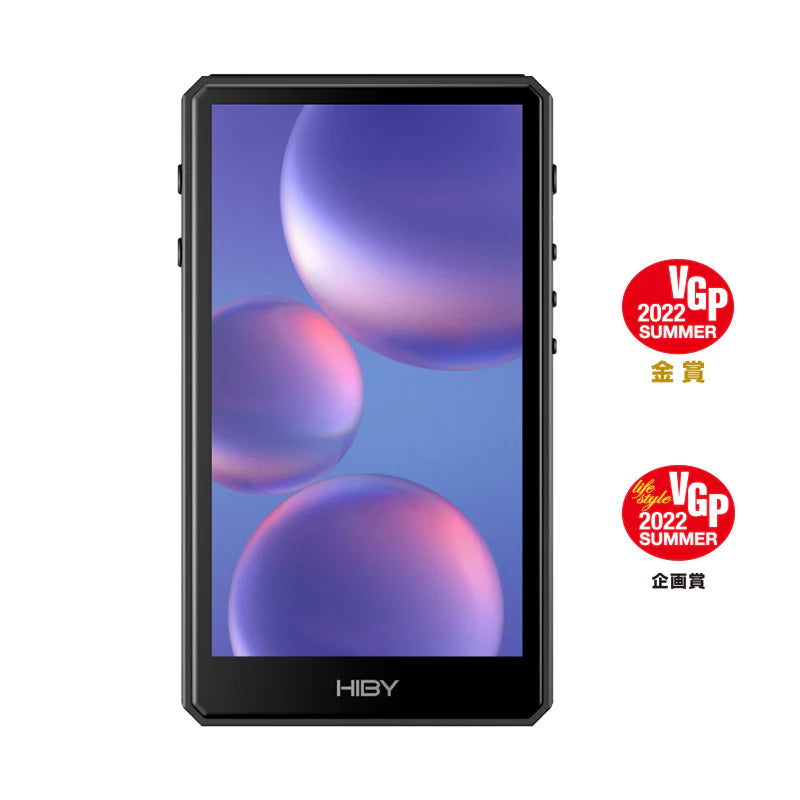

Huge screen for the win!

Huge colourful 4.7” 720p display on a compact package, for perfect display and control of your albums.

The ever-reliable HiBy OS

The HiBy OS is an in-house developed system architecture developed by HiBy targeting professional HiFi audio equipment. Optimized / novel components include system core, decoding system, audio DSP algorithms, media library management, external drivers/plugins etc. optimizing the player for lossless hi-res audio from the ground up. HiBy OS is synonymous with audio quality, flexibility and reliability.

Systemwide SRC bypass including Apple Music hi-res support

Fully open android compatible with virtually all 3rd party apps, bypassing sample rate conversion systemwide, allowing you to enjoy lossless music from any supporting app, including Apple Music!

HiByLink remote link for easy control of player from a smartphone

HiByLink is a convenient remote control function allowing any smartphone with HiByMusic installed to remotely control playback, volume control and playlist management on the R5 through WiFi or Bluetooth!

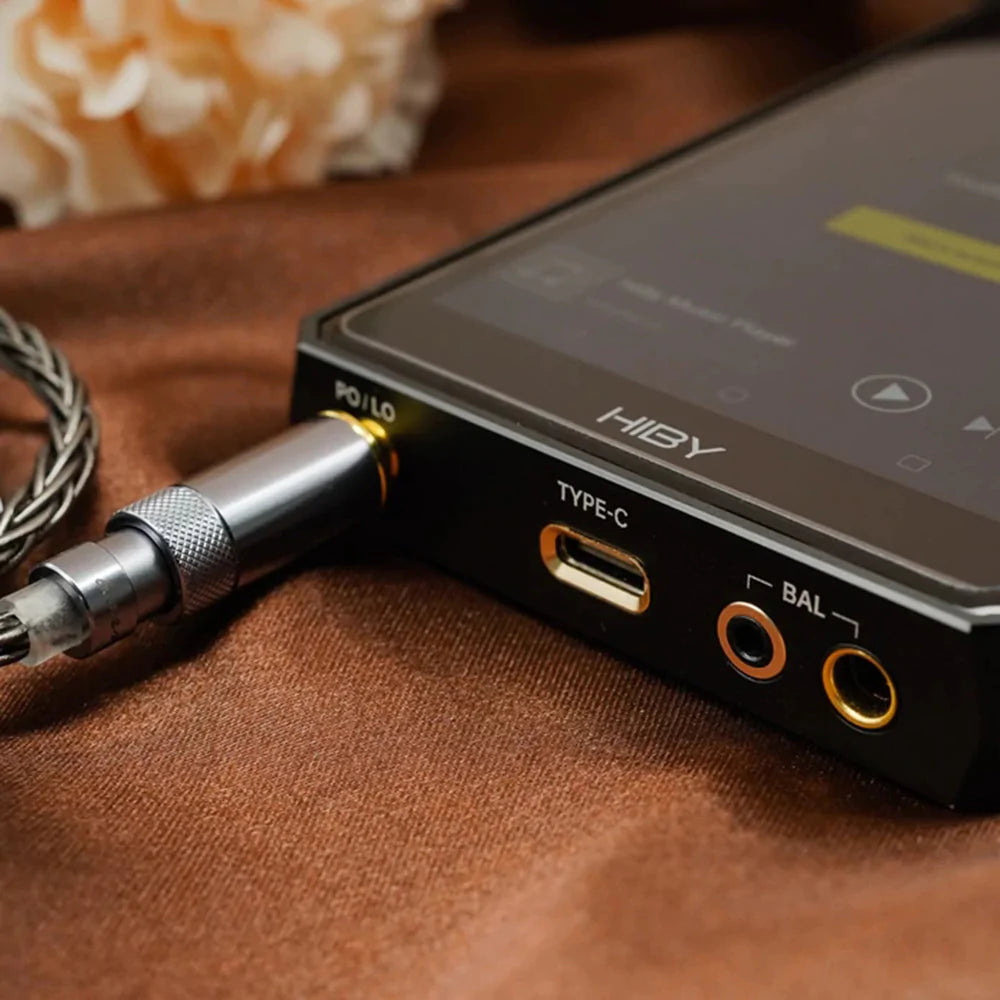

Connect to every headphone imaginable!

2.5mm / 3.5mm / 4.4mm headphone ports all here, all switchable to line out!

MQA to the max!

Supporting 16x MQA unfolding, enabling master quality sound directly from your device.

MQA (Master Quality Authenticated) is an award-winning audio technology that enables music fans to stream the original master recording into their home in the highest possible quality. The MQA file is fully authenticated, backward compatible, and small enough to stream, so you can play MQA on any compatible device. Wherever there is audio, MQA delivers the best sound.

Unwired unlimited

Two-way Bluetooth supports all Bluetooth audio codecs including UAT, LDAC, aptX, aptX HD, AAC, and SBC. 2.4GHz and 5GHz dual-band WiFi for a stable connection to your online music library at all times. Supports DLNA / WiFi music transfer.

UAT (Ultra Audio Transmission) is HiBy’s in-house developed all-new Bluetooth audio transmission codec. Supporting an industry-highest 192kHz transmission sample rate and up to 1.2Mbps Bluetooth bandwidth, this also can optimize its transmission characteristics according to different music genres, for the highest of audio fidelity from wireless!

QC3.0 quick charge

This battery takes forever to use up and a snap to charge back up!

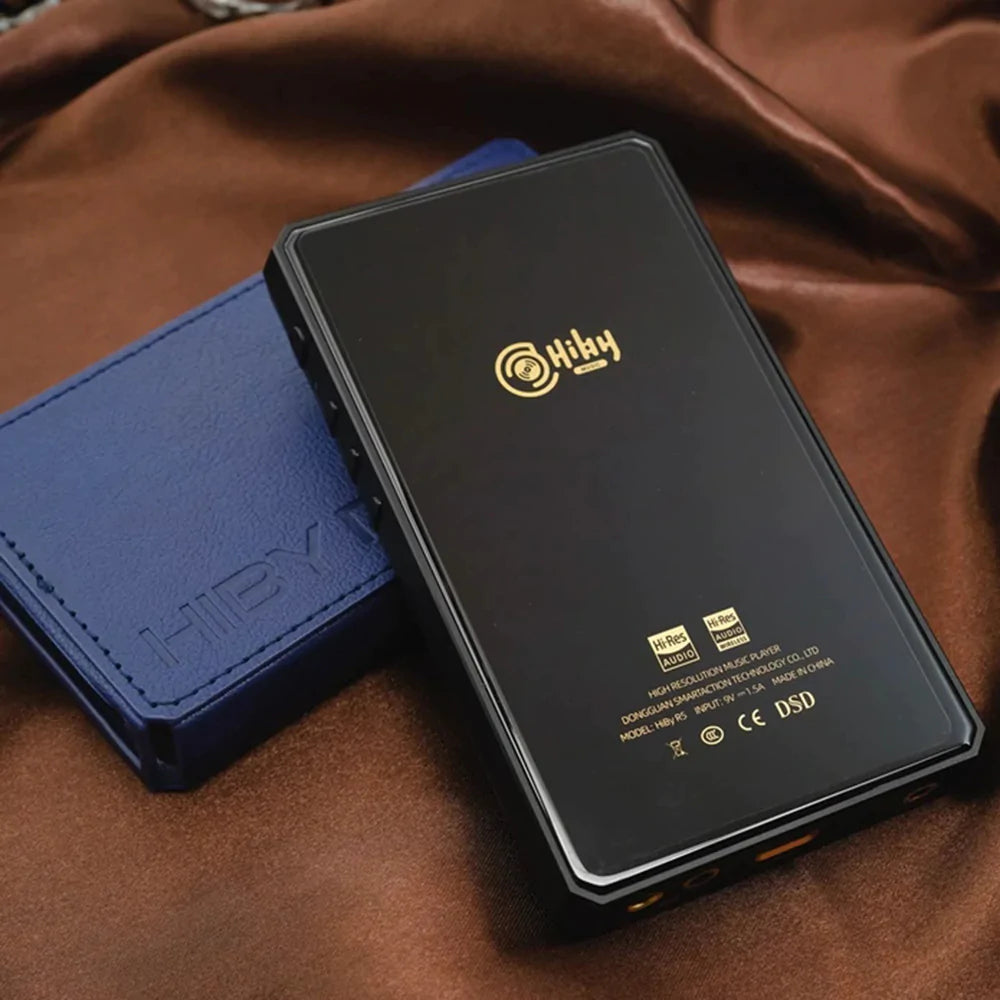

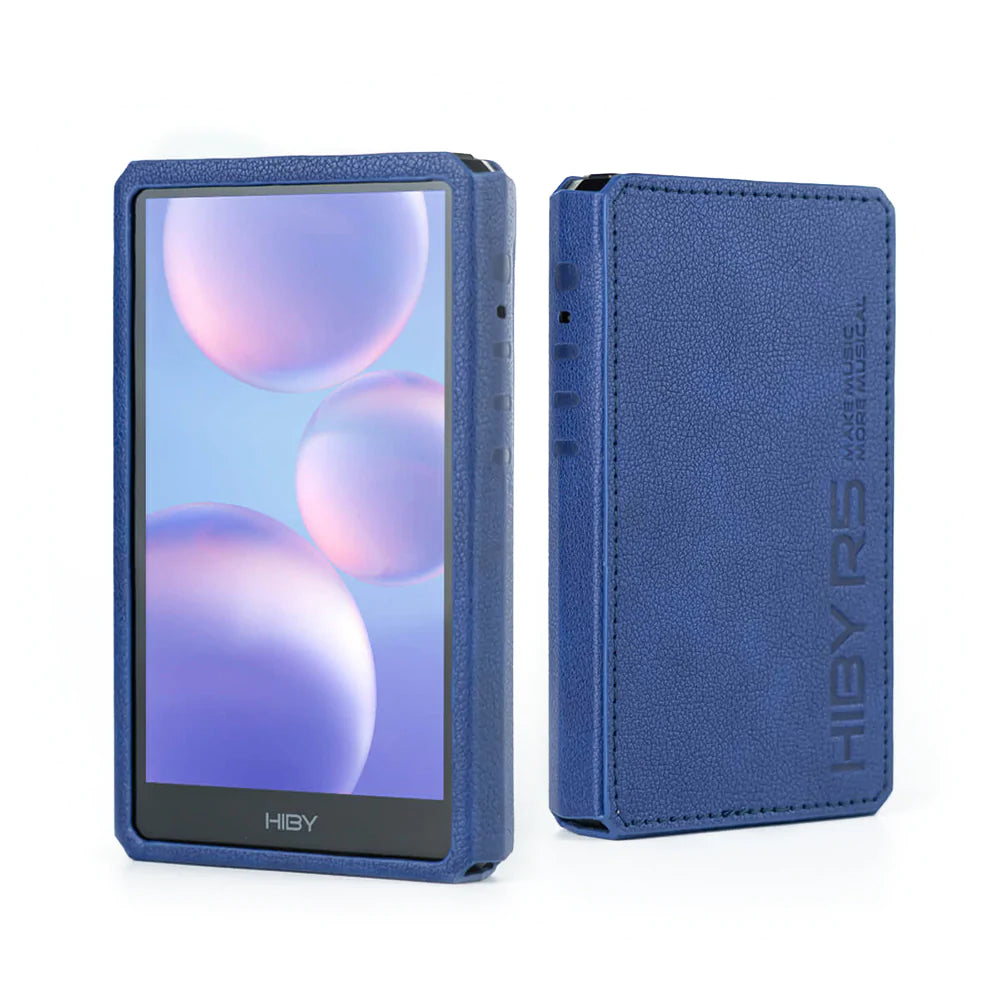

The leather protective case included

Made with high-quality PU leather, the HiBy-designed case protects your R5 from scratches and drops.

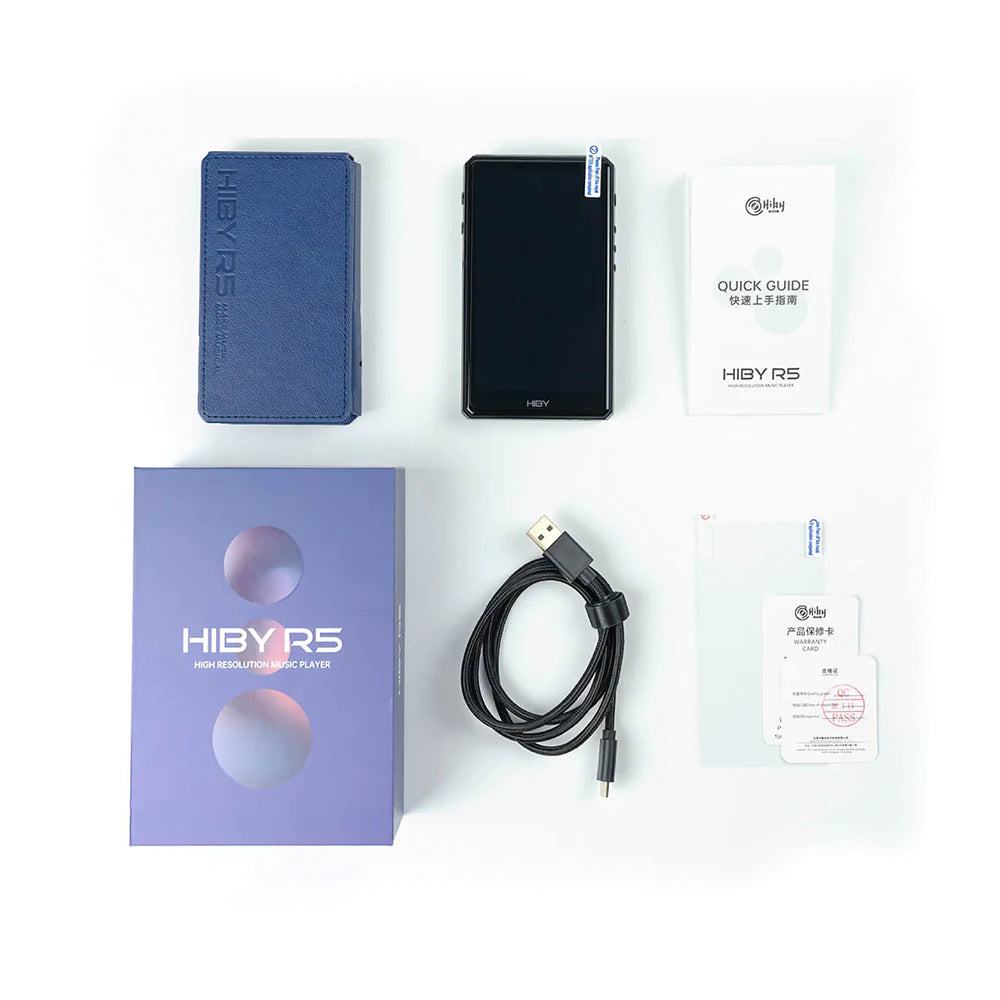

What’s in the box

Leather protective case, R5 Gen 2, user guide, package box, USB type-C cable, screen protector, warranty card, QC certificate.

Audio specifications

PO (economy mode) BAL (economy mode) PO (Class A headamp mode) BAL (Class A headamp mode)
THD+N @32Ω 0.0022% 0.0007% 0.0006% 0.0009%
MAX OUTPUT 1.9Vrms 3.2Vrms 2.2Vrms 3.9Vrms
Output Power @32Ω 110mW 320mW 150mW 475mW
Signal To Noise @32Ω 118dB 122dB 118dB 120dB
Frequency Response 20-80K 20-80K 20-80K 20-70K
Residual Noise 2uV 2.5uV 2.5uV 3.6uV
Channel Separation 1KHz/32Ω 62dB 82dB 62dB 99dB
Play time 35h 28h 10h 7h

Model: HiBy R5 (Gen 2)
Operating system: Android 8.1
SoC model: Snapdragon 425
DAC: ES9219C x2
WiFi: Supports 2.4GHz, 5GHz
Bluetooth: Bluetooth 4.2
USB: USB 2.0
Display size: 4.7”
Display type: IPS
Display resolution: 720*1280
RAM: 2GB
Internal storage: 16GB
Micro SD card: <2TB
Colour: Black
Body material:  Aluminium
Dimensions: 123*71.3*15.5 mm
Weight: 220 g
Input: 5V⎓0.5A or 9V⎓1.5A
Battery capacity: 4500mAh
Charging time: Approx. 2h (0%-100%)
Firmware upgrade: Over-the-air internet connected upgrade
Third-party app installations: Unlimited

Warranty Period: 1 Year from the date of Invoice
Covered: Manufacturing Defects Only
Warranty Form: https://www.theaudiostore.in/pages/warranty-claim-form

Established in 2011, HiBy Music specializes in research, development, and sales of high quality portable audio products. With over 40 professional audio R&D staff and nearly 20 years of experience in the portable audio field, we have developed dozens of portable digital audio players (DAPs), earphones, USB DACs, etc. Our own HiByMusic smartphone audio player app also has a user base of 2 million users in over 100 countries around the globe and has won accolades from professional users regarding its audio quality.

Customer Reviews

Based on 2 reviews
100%
(2)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
P
Prashant Kulkarni (Hyderabad)
Boss of DAP

I'm very excited while writing review of Hiby RT gen ii DAP. This is my first DAP experience in my musical journey. I totally and always listening with Mobile + DACs. After listening with Hiby R5 genii DAP i was totally mesmerized. I can hear all instruments at lower volume also. This is totally out of the world. So I'm at dark till now inobile world experience. Pritamji helped me a lot to come out with this mobile experience. He guide me to try this Hiby R5 genii DAP experience. The rest is history. Amazing DAP. Thanks Pritamji for suggesting me this DAP. Battery is also good. After receiving since last 12 days I'm not removed my headphone from this. Balanced 4.4mm is too good rendering. That's why this Hiby R5 genii DAP is boss of DAP. The mids are so clear and totally experience is that we are sitting at live concerts. Really this is so good one. Thanks once again Pritamji for removing from out from the mobile world. Ofcourse the delivery is totally out of the world from TAS, after place the order I received within a 20 hours. Very speedy delivery by TAS.

V
Vinith Paramel (Balangir)
Convenience of streaming app with high quality ESS DAC and Class A amp is a stellar combination !!

I'm enjoying every bit of my Hiby R5 Gen 2.. the good and bad part about this DAP is once you turn on the class A mode you can't go back to non-class A mode especially for streaming Apps (Apple CD quality) cause the sound is so amazing especially the layering/separation of instruments and vocals with class A mode on but unfortunately Class A mode eats up quite a bit of battery, hopefully it will improve as it is the case with Android phones.. somehow I felt the music played thru Hiby music app (local/Tidal) had more dynamics than CD quality songs streamed on Apple music.. but the convenience of streaming app (finding songs at your finger tip) with high quality ESS DAC and Class A amp is a stellar combination to have and Hiby has sweetened it more with SRC bypass throughout and not just native music app... another beautiful part is all sorts of jacks are available... if only Hiby had given SD 600 series SOC and Android 10 this DAP would have been unbeatable but I understand they have to cut some costs in order provide this whole package at budgeted price point... still the processor and Android can be smoothly handled if you restrict your app installation to minimal, by doing this you should have good enough resources to stream and toggle between diff apps without hiccups..

I would highly recommend this DAP cause right now this is the only budgeted DAP which comes at lower price but has almost all bells and whistles of a flagship DAP..

Shoutout to Pritam, who has been a great help in order to get this shipped and delivered to me within timelines given to me by Pritam.. it is always a pleasure doing business with Pritam.. with this kind of help & support "theaudiostore" will always be my go-to place for all portable music devices, IEM, headphones & accessories..

HiBy R5 Gen2 Portable Music Player
