Description

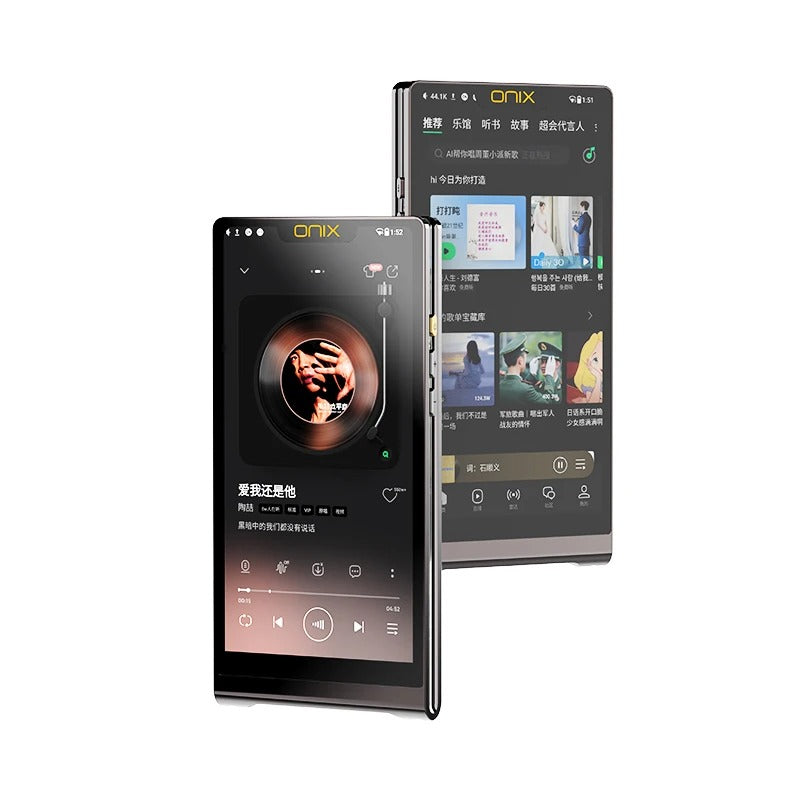

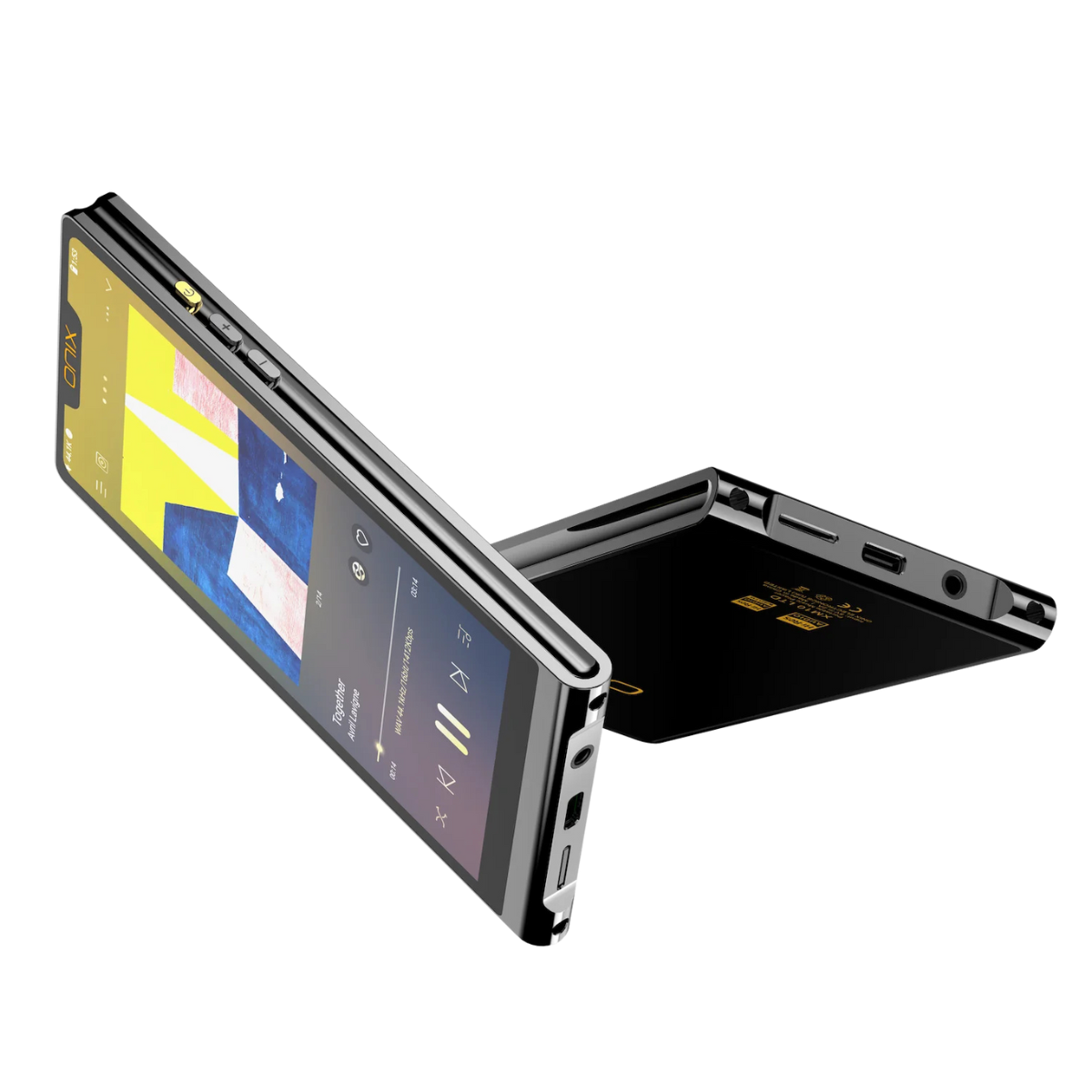

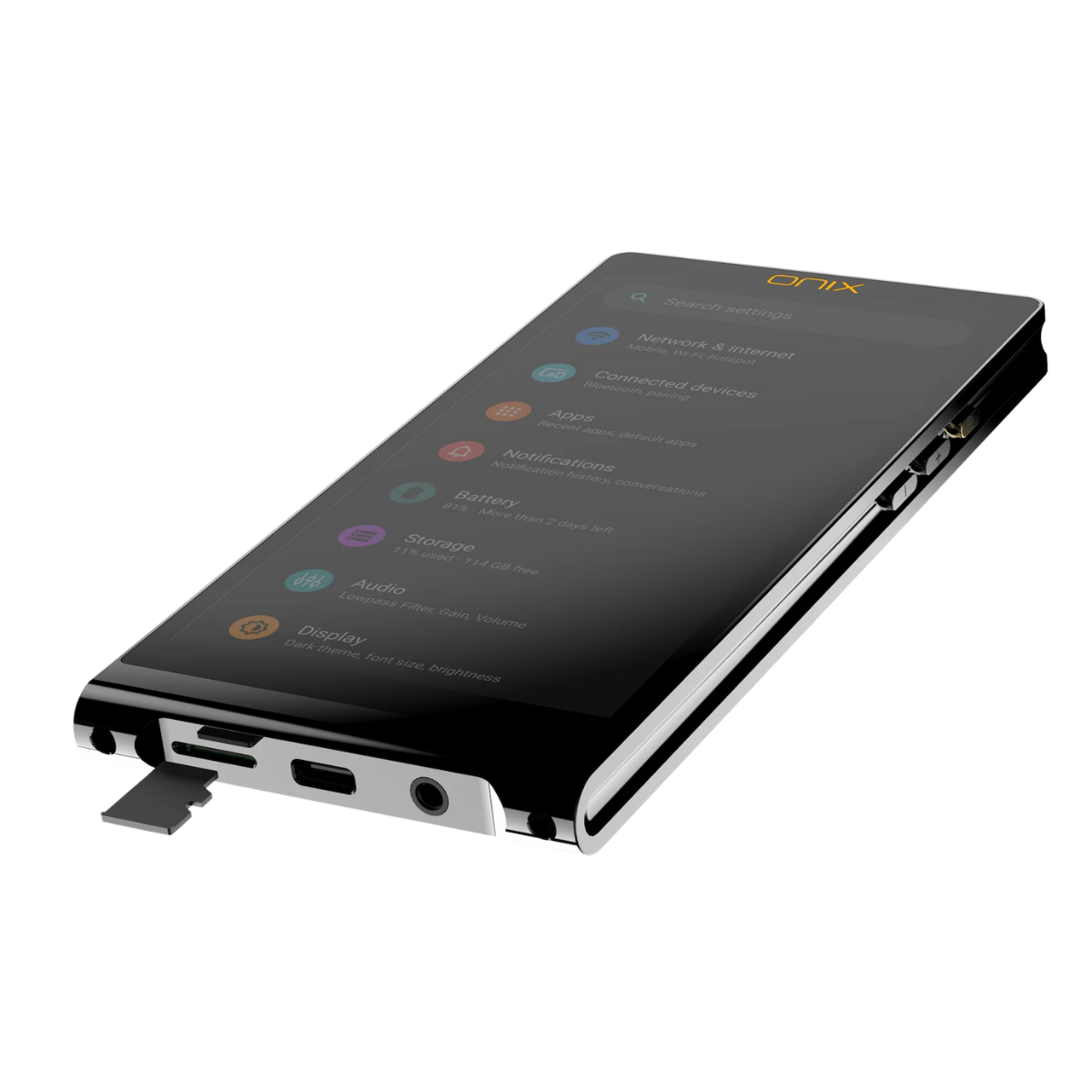

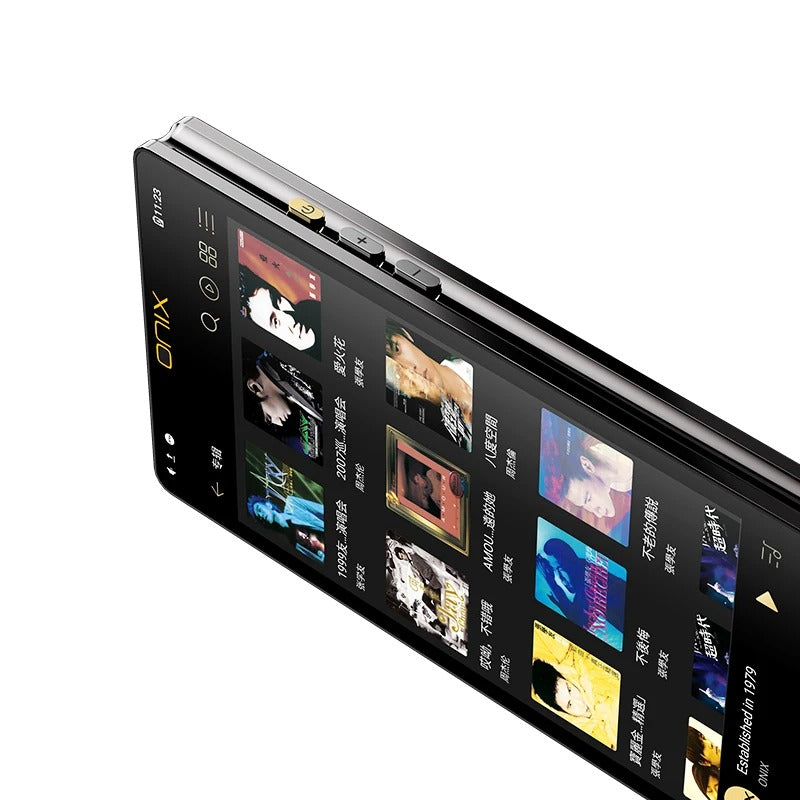

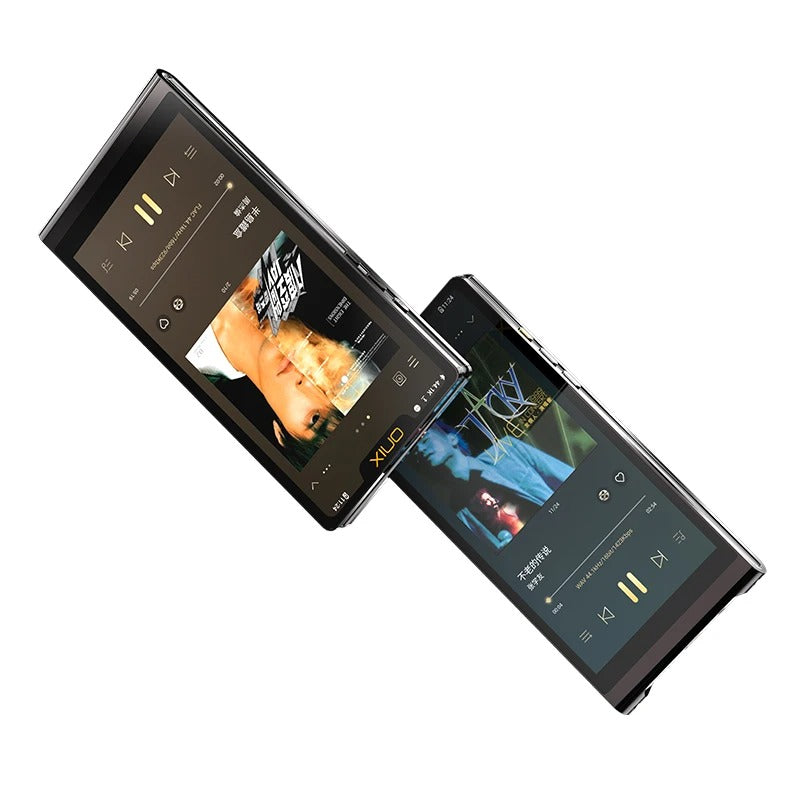

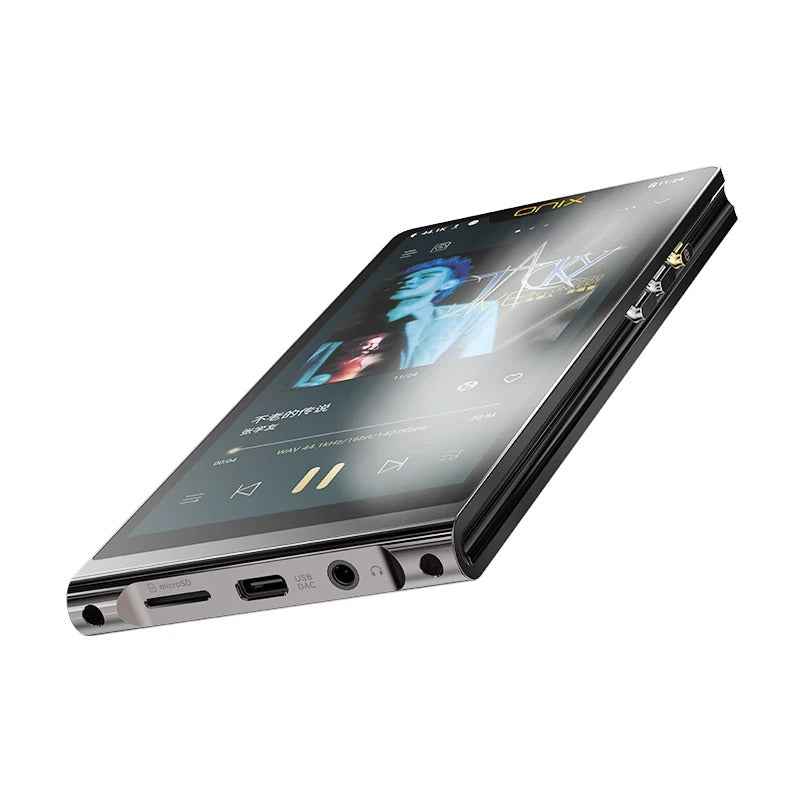

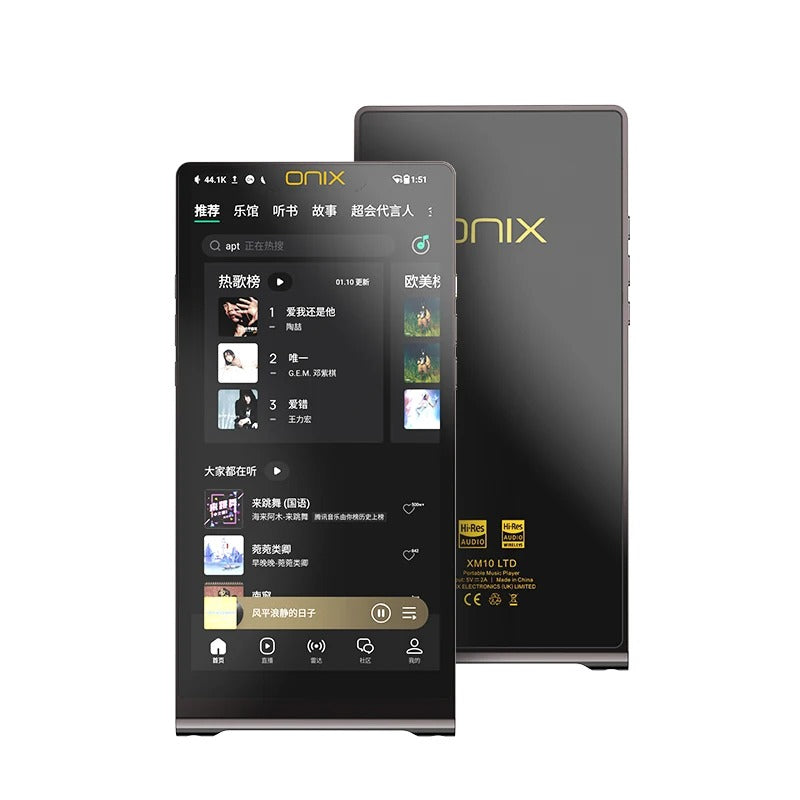

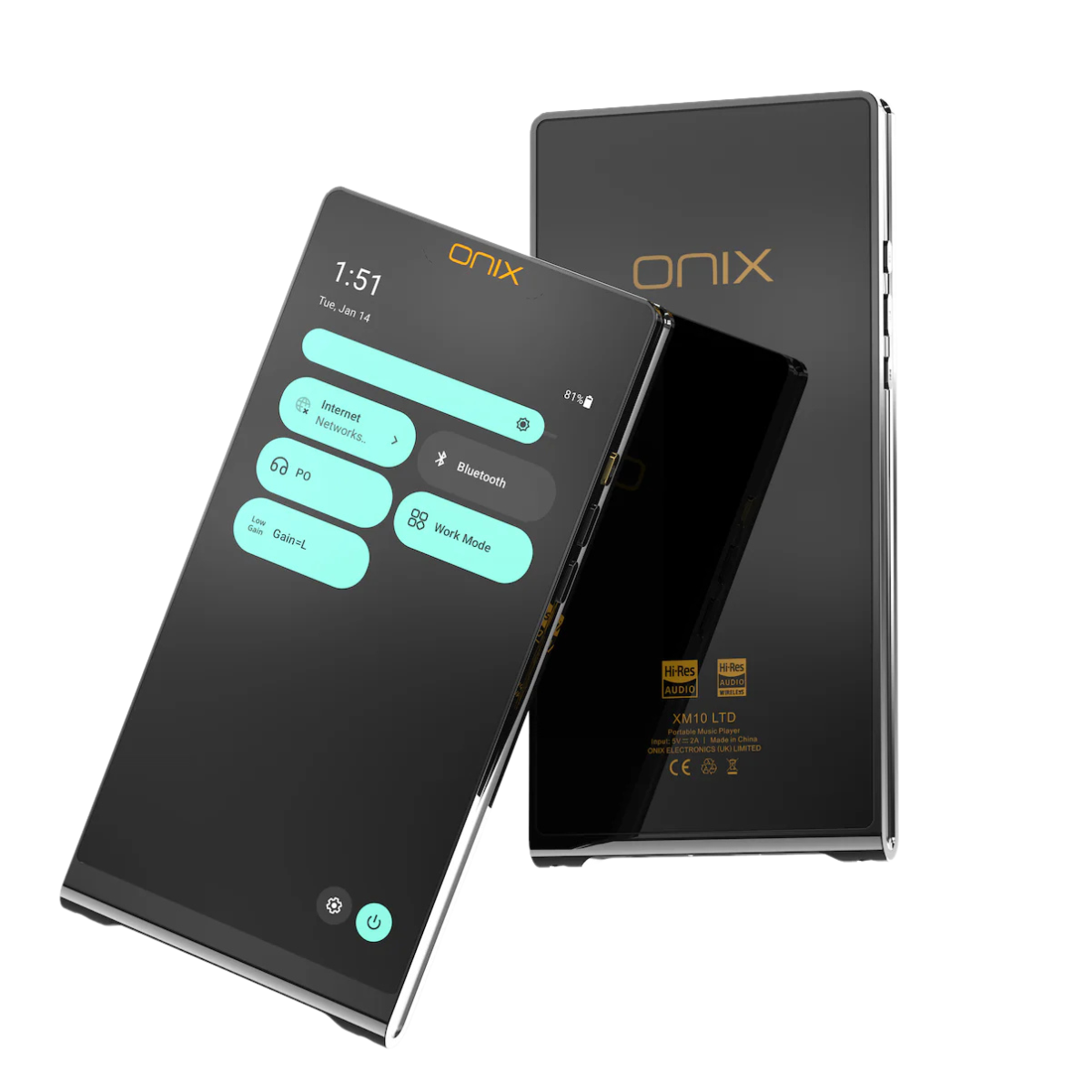

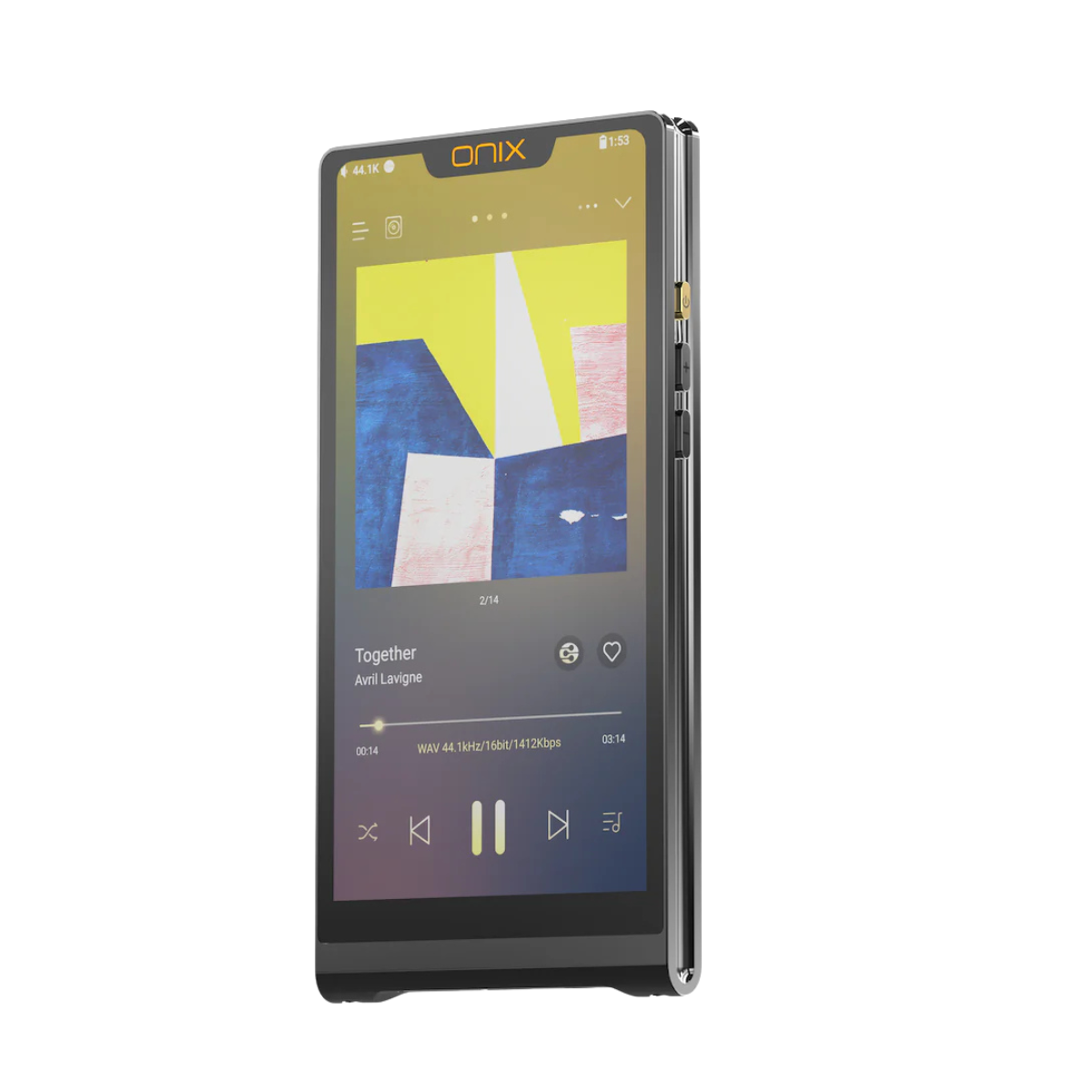

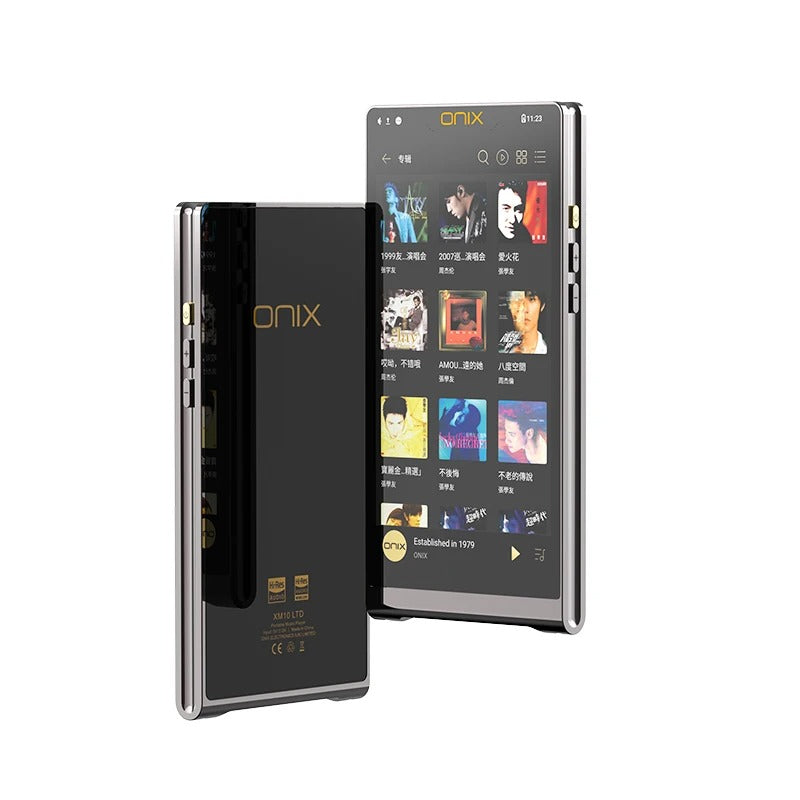

Shanling ONIX Waltz XM10 LTD – Portable Hi-Res Digital Audio Player
The Shanling ONIX Waltz XM10 LTD is a premium Hi-Res digital audio player (DAP) designed for audiophiles who demand top-tier sound quality. Initially introduced as part of Shanling’s Onix Miracle package, this limited-edition player now comes with enhanced audio performance and cutting-edge hardware.
Unmatched Sound Quality with AKM DAC & High-Power Amplifier
Powered by a dual AKM AK4191+AK4499EX DAC chip and an AD8397 headphone amplifier, the ONIX Waltz XM10 LTD delivers pristine audio with ultra-low distortion. It supports PCM 32bit/768kHz and DSD1024, ensuring studio-grade sound reproduction. With up to 877mW output power, this DAP effortlessly drives a wide range of high-impedance headphones.
Flagship Performance with Android 13 & Snapdragon 665
Running on Android 13, the device offers a seamless, smartphone-like experience. The Snapdragon 665 processor, combined with 6GB RAM and 128GB storage (expandable via microSD), ensures smooth operation for apps, streaming services, and offline playback. The 6-inch Full HD (2160x1080) touchscreen provides a crisp, responsive interface for an intuitive user experience.
Versatile Connectivity & Wireless Streaming
Stay connected with WiFi 2.4G/5G, Bluetooth 5.0 (LDAC, aptX HD), AirPlay 2, and DLNA support. Whether streaming lossless audio or using the DAP as a USB-C DAC, the ONIX Waltz XM10 LTD offers unmatched versatility. The 3.5mm jack output, along with a balanced 4.4mm adapter, ensures compatibility with various headphones and IEMs.
Long Battery Life & Fast Charging
Equipped with a 4300mAh battery, this portable player delivers up to 9 hours of continuous playback. Fast charging via USB-C (QC/PD support) keeps you powered throughout the day.
Why Choose the Shanling ONIX Waltz XM10 LTD?
- High-fidelity audio with AKM DAC & AD8397 amplifier
- Powerful output (877mW @ 32Ω) for premium headphones
- Android 13 & Snapdragon 665 for smooth performance
- 6-inch Full HD touchscreen for intuitive navigation
- WiFi, Bluetooth 5.0, AirPlay 2 & DLNA for seamless streaming
- 9-hour battery life & USB-C fast charging
Whether you're a discerning audiophile or a music lover on the go, the Shanling ONIX Waltz XM10 LTD sets a new benchmark for portable high-resolution audio players.
General
Product Type: Digital Audio Player (DAP)
Operating System: Android 13
Processor: Qualcomm Snapdragon 665
Memory: 6GB RAM + 128GB ROM
Audio Performance
DAC Chipset: AKM AK4191 + AK4499EX
Amplification Chip: AD8397
Supported Sample Rates:
PCM 32bit / 768kHz, DSD1024
USB DAC Mode: PCM 32bit / 384kHz, DSD256
Connectivity & Ports
Inputs:
1 × USB-C (DAC & Charging)
1 × MicroSD slot (Supports up to 2TB)
Outputs:
1 × 3.5mm jack
1 × 4.4mm balanced jack (via included adapter)
Wireless Connectivity:
WiFi: 2.4G/5G
Bluetooth 5.0 (Bidirectional)
Supported Bluetooth Codecs:
Reception: SBC, LDAC
Transmission: SBC, AAC, aptX, aptX HD, LDAC
Supported Audio Formats:
DSD (ISO, DSF, DFF), ISO, DXD, APE, FLAC, WAV, AIFF, AIF, DTS, MP3, WMA, AAC, OGG, ALAC, MP2, M4A, AC3, M3U, M3U8, OPUS
Display
Screen: 6" Touchscreen
Resolution: 2160 × 1080 pixels
Audio Output Specifications
3.5mm Jack Output
Output Power:
19mW @ 32Ω (Low Gain, 1.3V, THD+N < 0.002%)
227mW @ 32Ω (High Gain, 2.7V, THD+N < 1%)
24mW @ 300Ω (High Gain, 2.7V, THD+N < 1%)
Frequency Response: 20Hz - 40kHz (-0.5dB)
THD+N: 0.0009% @ 32Ω (A-WT @ 0.25V, High Gain)
Dynamic Range: 122dB @ 32Ω
Channel Separation: 72dB @ 32Ω
SNR: 122dB @ 32Ω (A-WT, High Gain)
Noise: 113dB
Output Impedance: 0.6Ω
4.4mm Jack Output (with Adapter)
Output Power:
227mW @ 32Ω (Low Gain, 1.3V, THD+N < 0.1%)
877mW @ 32Ω (High Gain, 5.3V, THD+N < 1%)
93mW @ 300Ω (High Gain, 5.3V, THD+N < 1%)
Frequency Response: 20Hz - 40kHz (-0.5dB)
THD+N: 0.0007% @ 32Ω (A-WT @ 0.5V, High Gain)
Dynamic Range: 124dB @ 32Ω
Channel Separation: 100dB @ 32Ω
SNR: 124dB @ 32Ω (A-WT, High Gain)
Noise: 110dB
Output Impedance: 1.0Ω
Battery & Power
Battery Type: Lithium 4300mAh
Battery Life: Up to 9 hours
Charging Port: USB-C
Physical Specifications
Dimensions: 157.7 × 76.8 × 11.5mm
Weight: 338g
Package Contents
1 × Shanling Onix Waltz XM10 LTD DAP
1 × 3.5mm Male to 4.4mm Female Balanced Adapter
Warranty Period: 1 Year from the date of Invoice
Covered: Manufacturing Defects Only
Warranty Form: https://www.theaudiostore.in/pages/warranty-claim-form
Cable: 1-month warranty only for manufacturing defects only
Established in 1988, Shanling has been a pioneer in audio product development, launching their first Hi-Fi stereo amplifier that same year. With a relentless commitment to innovation, Shanling has acquired numerous patented technologies and qualifications, including SONY LDAC, Bluetooth BQB, and Hi-Res certification from the Japanese Audio Association, among others.
With over 30 years of experience, Shanling values integrity, teamwork, and dedication. Our employees are the cornerstone of our success, and we prioritize customer satisfaction and product quality above all else. Our headquarters in Shenzhen and factory in Dongguang enable us to seamlessly integrate research and development, production, and sales of a wide range of high-quality products, including Hi-Res portable music players, amplifiers, headphones, SACD/CD players, and power conditioners. We are proud of our strong partnerships with renowned international hi-end manufacturers and our stellar reputation in the industry.
