Description
Unleash High-Fidelity Sound for Every Note and Game

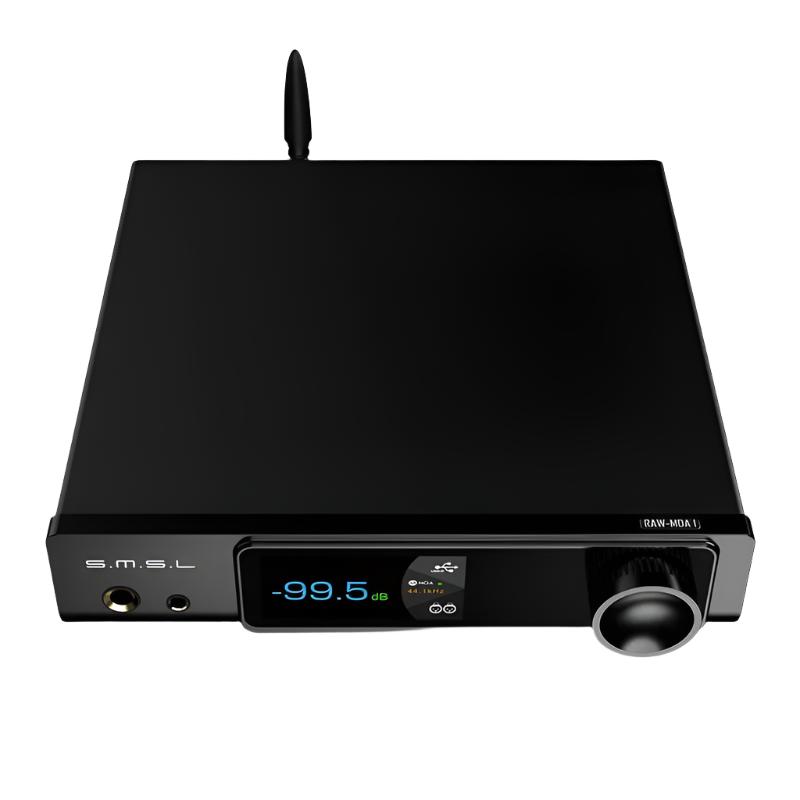

Are you tired of subpar audio quality? The SMSL RAW-MDA 1 DAC/Amplifier is here to transform your auditory experience. Designed to please both audiophiles and gamers alike, this powerful DAC/Amp combo brings high-fidelity sound to everything you love—whether you're streaming high-resolution music from your PC, enjoying your favorite tunes on your iPhone, or immersing yourself in gaming on your PS5 or Nintendo Switch. The RAW-MDA 1 is your gateway to audio perfection.
Unrivalled Audio Clarity with Dual ESS ES9039Q2M Chips
At the heart of the RAW-MDA 1 are the ES9039Q2M chips, renowned for their exceptional ability to translate digital music files into breathtaking sound. These chips ensure that every detail is preserved, offering audio that’s as clear and lifelike as watching a 4K video compared to a grainy VHS tape. With the ES9039Q2M, your music retains its original depth and texture, allowing you to experience every note, whisper, and emotion as the artist intended.
Cutting-edge wireless Freedom with Bluetooth 5.1
Say goodbye to tangled cables and hello to wireless bliss. The Qualcomm Bluetooth 5.1 chip in the RAW-MDA 1 lets you stream high-resolution audio from your smartphone, tablet, or any Bluetooth-enabled device. It supports advanced codecs like LDAC, aptX HD, SBC, and AAC, delivering wireless audio so pristine, you'll forget it’s not connected by a cable.
Master the Digital Domain with Full MQA Decoding
The SMSL RAW-MDA 1 elevates your listening experience by fully decoding MQA files, ensuring you receive the best possible audio quality. When you play MQA files or MQA-CDs through the RAW-MDA 1, they are "unfolded" to their full potential, revealing the rich details and nuances that the artist intended.
Versatile Connectivity with Dual USB Modes
Modern audio demands flexibility, and the RAW-MDA 1 delivers with dual USB modes. USB 2.0 supports high-resolution audio up to 32-bit/768kHz, perfect for audiophiles, while USB 1.1 provides a driver-free experience up to 96kHz. It’s also compatible with your PS4, PS5, and Nintendo Switch, turning your gaming sessions into an immersive, concert-like experience.
Sleek and Durable Design
The RAW-MDA 1 isn't just about sound; it’s a design statement. With its tempered glass display and gold-plated connectors, this DAC/Amp is as durable as it is stylish. The included remote control lets you make adjustments from the comfort of your couch, while the sleek design ensures it complements any setup, whether minimalist or maximalist.
Precision Sound with OPA1612A Op-Amps
Inside the RAW-MDA 1, you'll find six high-end dual op-amps, the OPA1612A, carefully selected for their superior audio performance. These components ensure your sound remains clean, pure, and true to the original recording. Because when it comes to audio, only the best will do.

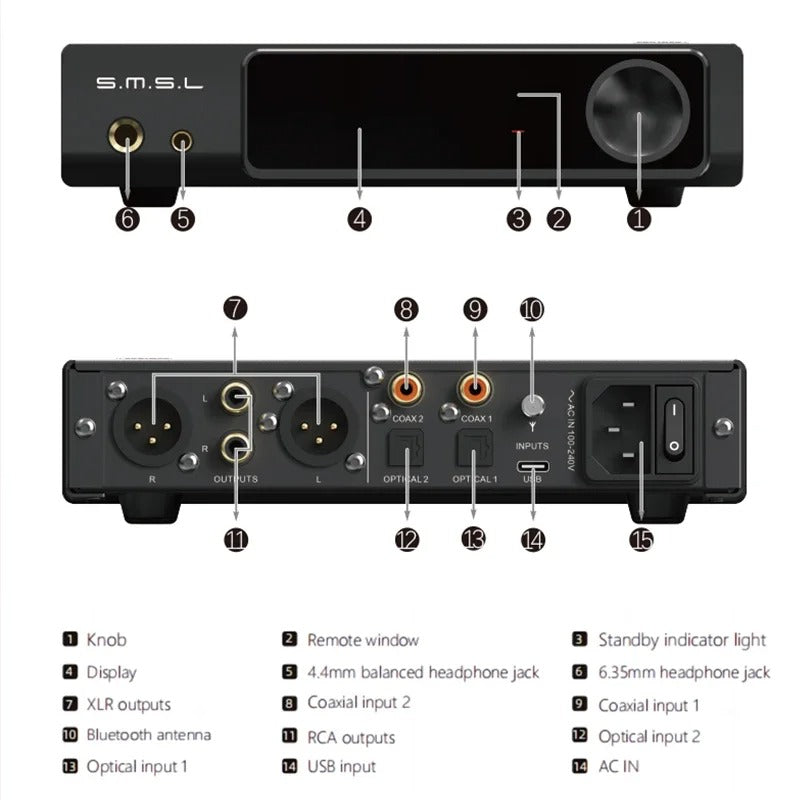

Inputs:
USB
Optical x2
Coaxial x2
Bluetooth
Outputs:
RCA
XLR
Headphone
THD+N: 0.00005% (-124.5dB non-weighting)
Line output amplitude:
XLR: 5.2Vrms
RCA: 2.5Vrms
HP: 8.2Vrms
Headphone output power:
16Ω: 2.5W x2
32Ω: 1.7W x2
Output impedance:
Line out: 100Ω
HP out: Near 0Ω
Dynamic range:
XLR: 132dB
RCA: 127dB
HP: 122dB
SNR:
XLR: 132dB
RCA: 127dB
HP: 122dB
USB transmission: Asynchronous
USB compatibility:
Windows 7 / 8 / 8.1 / 10 / 11 (requires driver)
Mac OSX 10.6 or later
Linux (driverless)
MQA decoder: USB / Optical / Coaxial
Sampling rate & bit depth:
USB:
PCM: 44.1~768kHz (32-bit)
DSD: 2.8224~22.5792MHz (1-bit)
DoP: DoP256
Optical / Coaxial:
44.1~192kHz (24-bit)
DoP: DoP64
Bluetooth specification: 5.1 (supports SBC, aptX, aptX HD, LDAC)
Power consumption: <30W
Standby power: <0.5W
Size: 7.4 x 1.8 x 7.0 inches (189 x 45 x 179 mm)
Weight: 2.24 lbs (1.02 kg)
What’s included
SMSL RAW-MDA 1 DAC/Amp
Full-featured remote control
Power cable
USB cable
User manual
Warranty Period: 1 Year from the date of Invoice
Covered: Manufacturing Defects Only
Warranty Form: https://www.theaudiostore.in/pages/warranty-claim-form
SMSL specializes in high-quality audio DACs, headphone amplifiers, and power amplifiers, with their own research, development, manufacturing, and marketing teams.

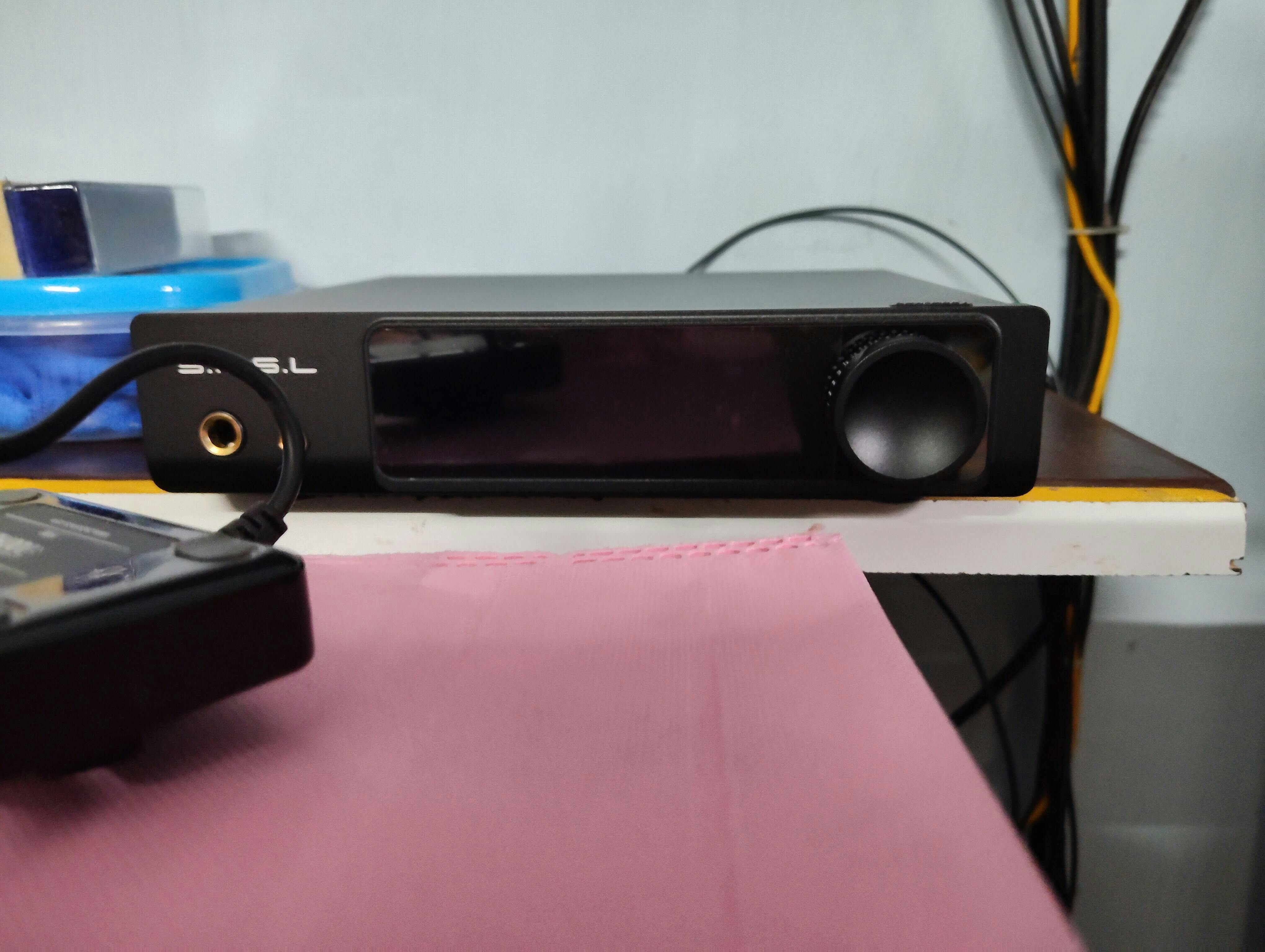

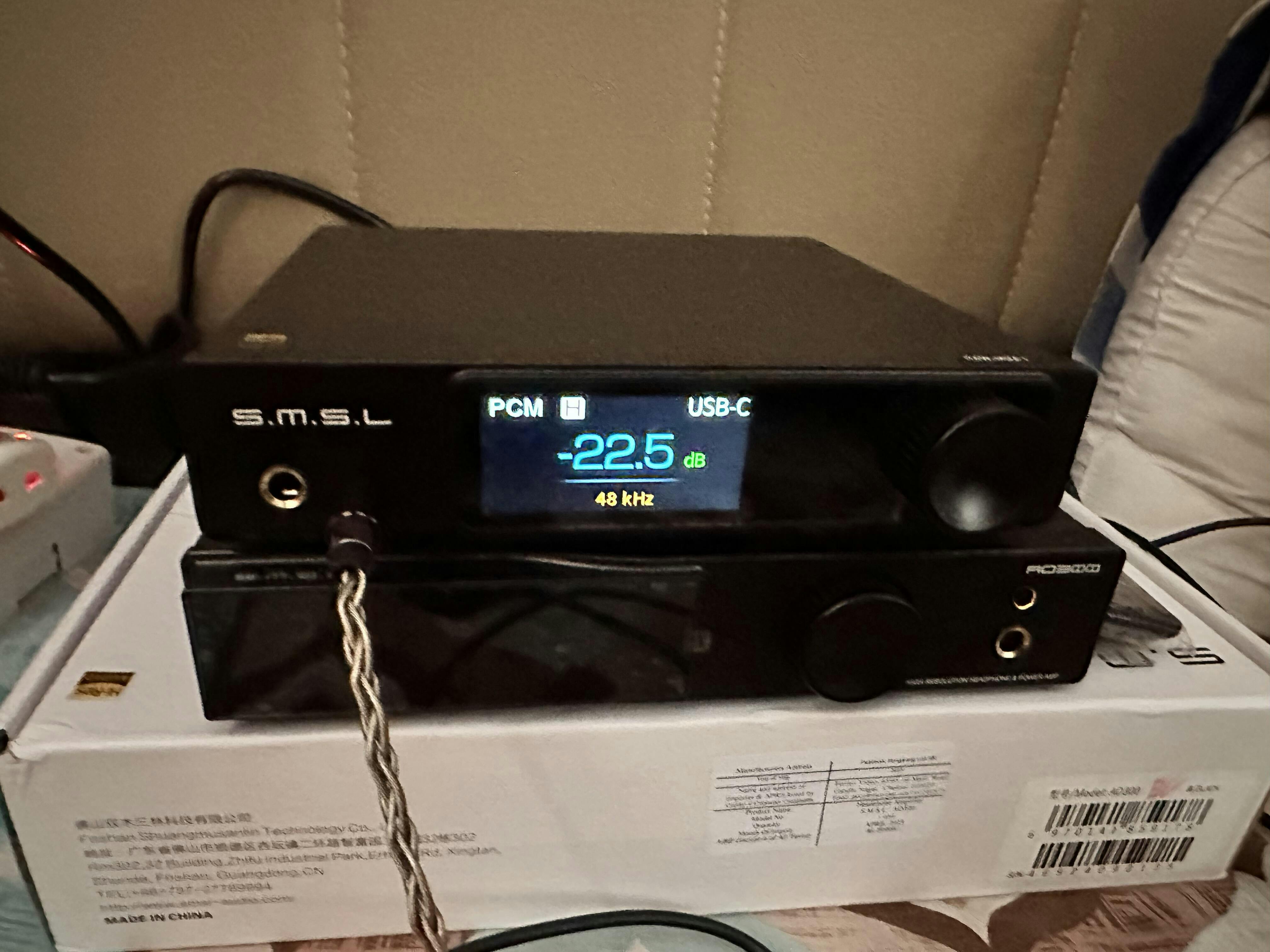

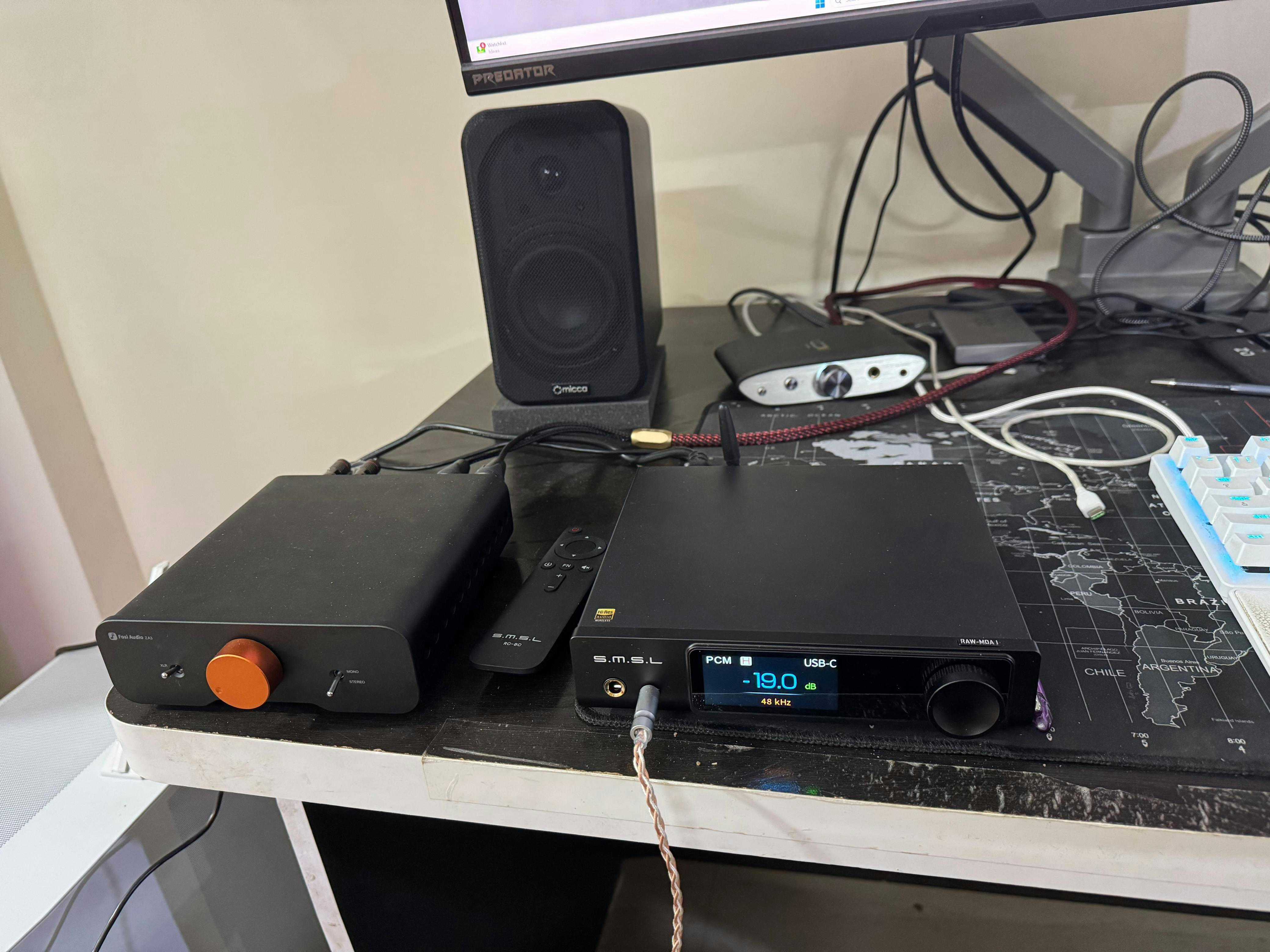

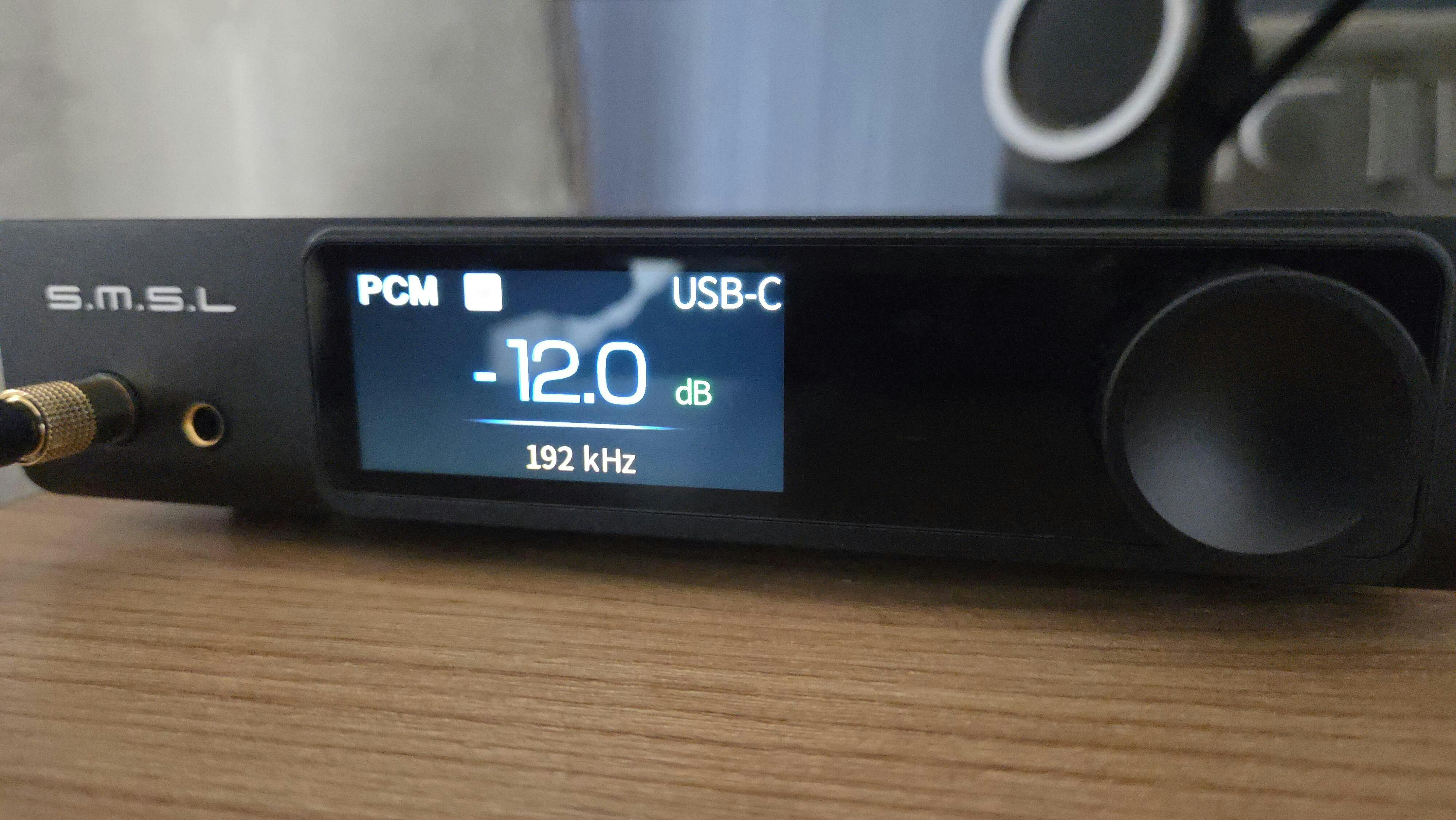

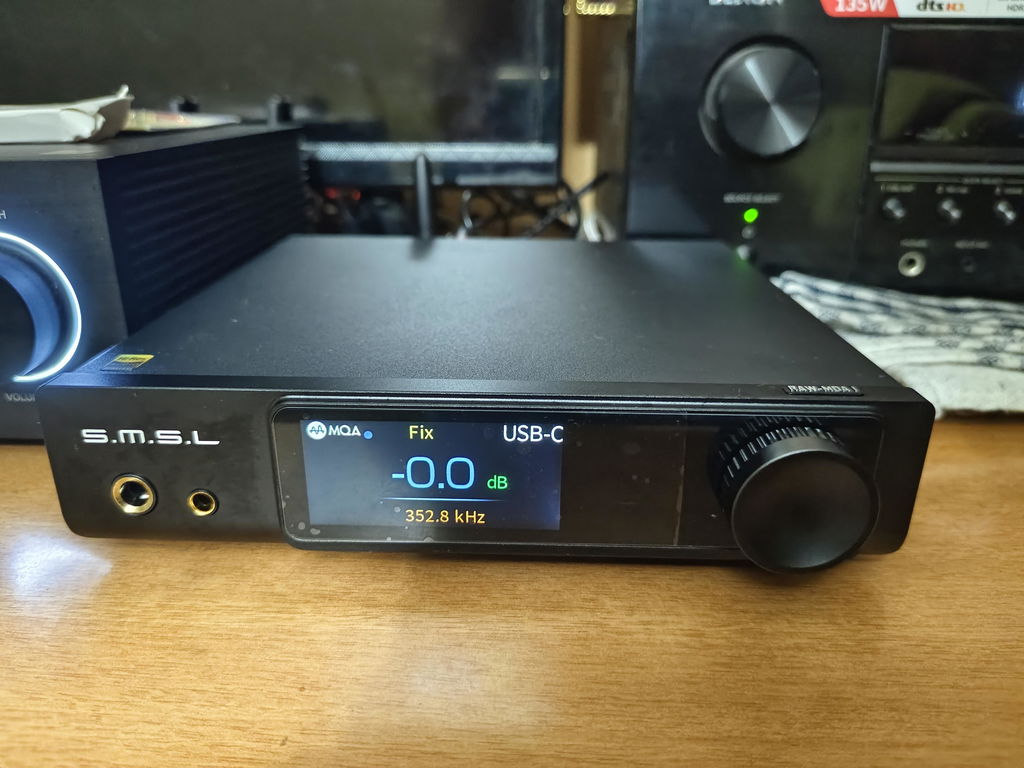

I've always enjoyed the hallmark ESS sound - resolution and instrument separation - and own a number of portable as well as desktop DACs based on various ESS chips. The RAW MDA-1 maintains that tradition but has even better imaging and soundstage IMHO. True, the sound signature of a DAC does not depend on the chip alone; the output stage design also plays a big part - and SMSL's expertise is evident here, just like in their AKM-based offerings like the Sanskrit MKII or more recently - the SU-1. Of the many albums that I used for initial impressions - want to specifically mention one - Dave Brubeck Live With The LSO. I was able to make out even the more recessed instruments and the sound was distinctly holographic - I could pinpoint location of instruments and the soundstage depth was amazing! Extremely happy with the purchase and thanks to TAS for bringing this to India so soon!
Thank you for your detailed review of the SMSL RAW-MDA 1 Desktop DAC & Headphone Amplifier. We are thrilled to hear that you are pleased with the product's superior imaging and soundstage, as well as its hallmark ESS resolution. We take pride in our output stage design and are glad that it has met your expectations. We appreciate your support and hope you continue to enjoy your listening experience with us. Thank you for choosing SMSL & The Audio Store.
